Photos shown for illustration; shade and shape may differ slightly.

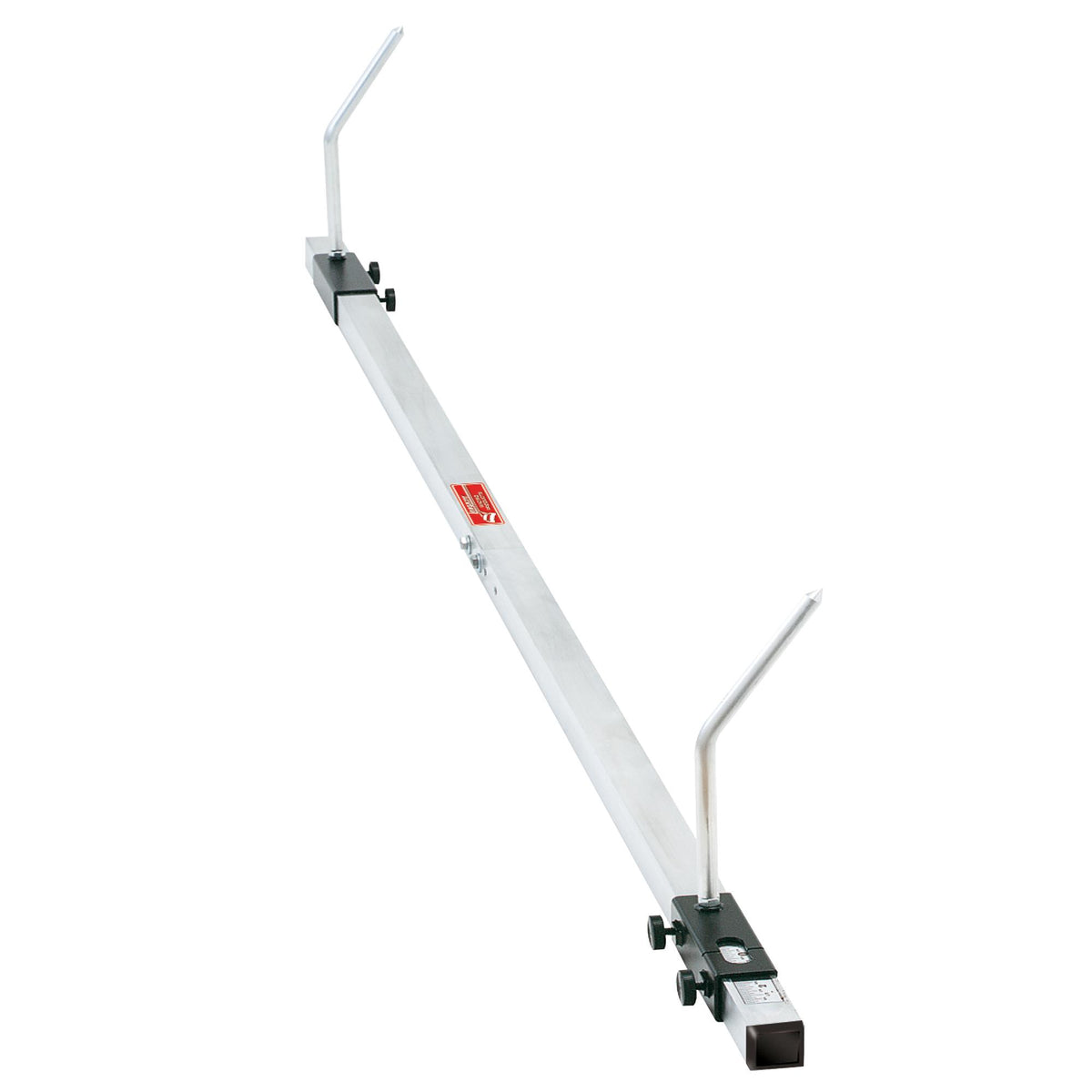

Longacre 52-79620 Toe Gauge, Aluminium
Supplier stock
The Longacre 52-79620 toe gauge measures wheel toe as the difference between the front and the rear of the tyres. It is accurate to 1/16 inch, or 1.6 mm. One person can do the whole job.
Specifications
| Measures | wheel toe |
| Accuracy | 1/16 inch (1.6 mm) |
| Adjustable width | up to 70 inch (1778 mm) |
| Scale | graduated in fractions of an inch |

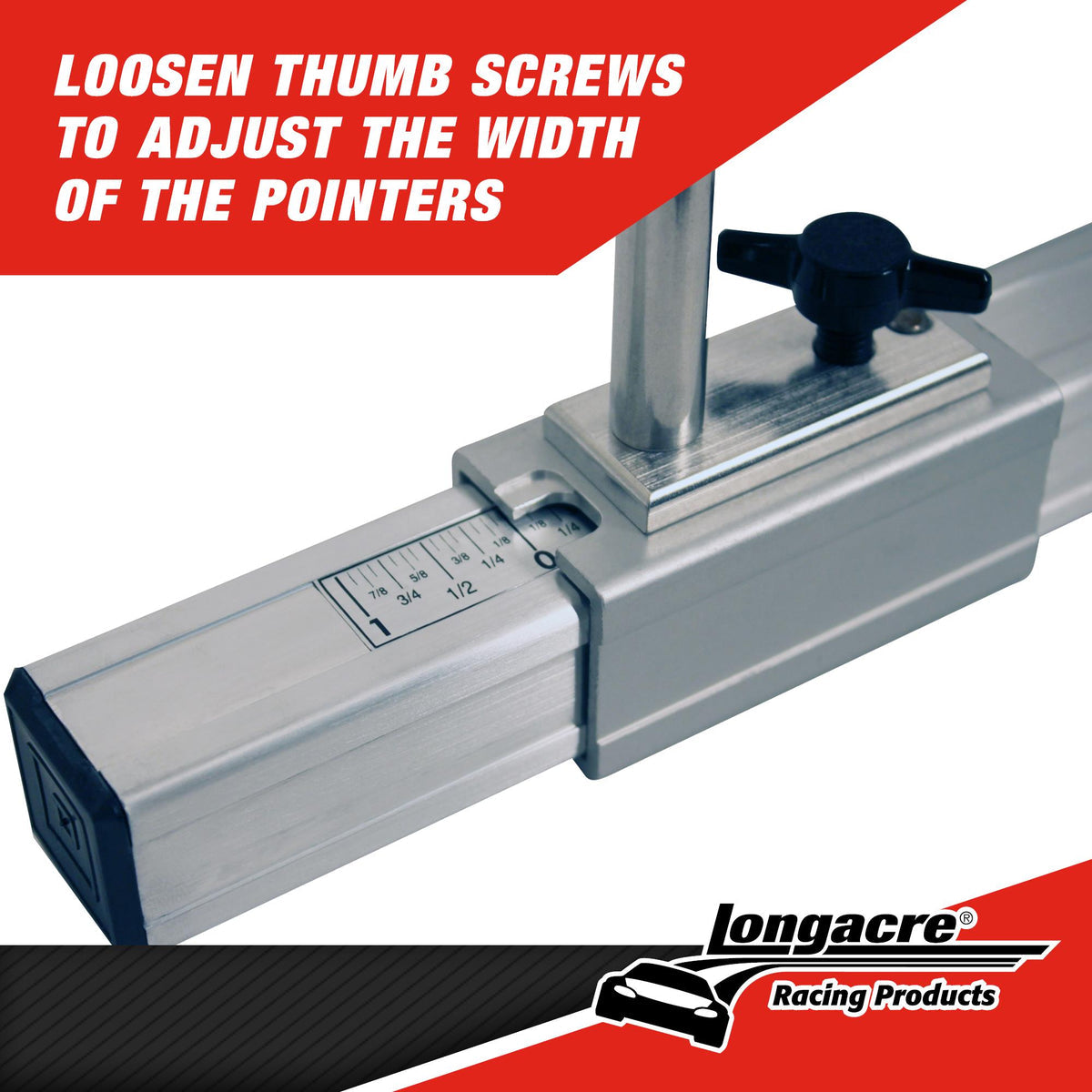

| Adjustment | sliding pointer with thumb screws |
| Material | aluminium |
| Manufacturer part number | Longacre 52-79620 |
How to measure
- with the wheels raised, scribe a line on each tyre sidewall that the wheel traces as it turns

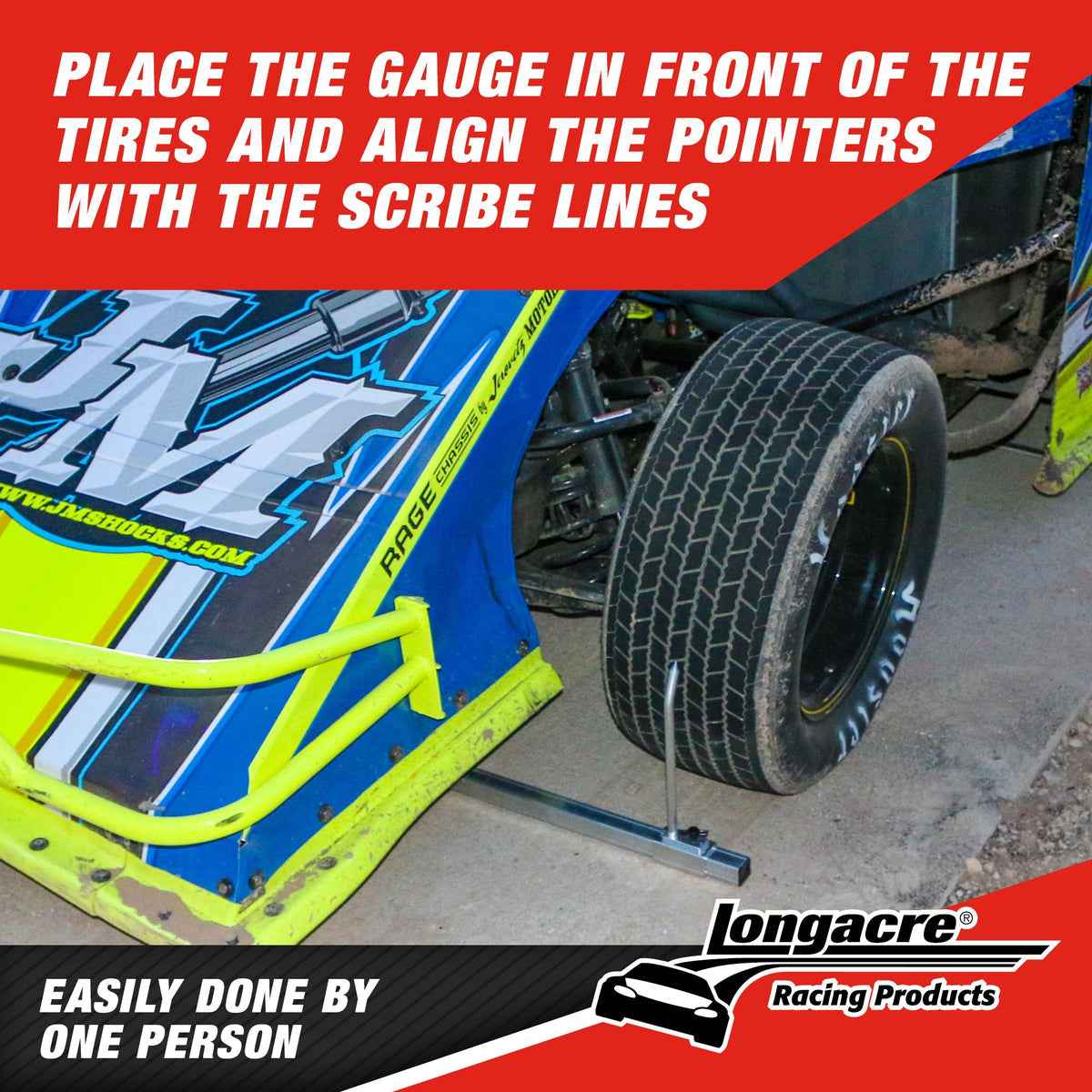

- place the gauge in front of the wheels, with the pointers on the two lines
- then move it behind the wheels: fixed end on one line, loosen the slider and bring it onto the other
- the difference reads straight off the scale, without working it out from two tape measurements
Not included
- the tyre scribe does not come with the gauge; Longacre sells it separately
- the gauge measures toe only; camber and caster are measured with the Longacre magnetic gauge
Longacre 52-79620 Toe Gauge, Aluminium
Sale price1.355,00 lei
