10mm Wheel Spacers & 10 Conical Seat Bolts M12x1.5 40mm - BMW Z4 Z4M
In stock
The selected option (Japan Racing JRWS2) is ready to ship.
On the BMW Z4 Z4M a 10 mm spacer pushes the wheel out level with the arch, and the standard bolt is then too short. The kit comes with the 40 mm bolts, so you do not have to work out the length yourself.
Not compatible with the rear axle on BMWOn BMW the hub lip at the rear protrudes further than at the front, so a 10 mm spacer ends up sitting on the lip instead of seating flat against the hub face. The wheel is then neither hub centric nor properly clamped. For the rear axle choose the 20 mm set. On the front axle, measure how far the hub lip protrudes first: the spacer has to be thicker than that.

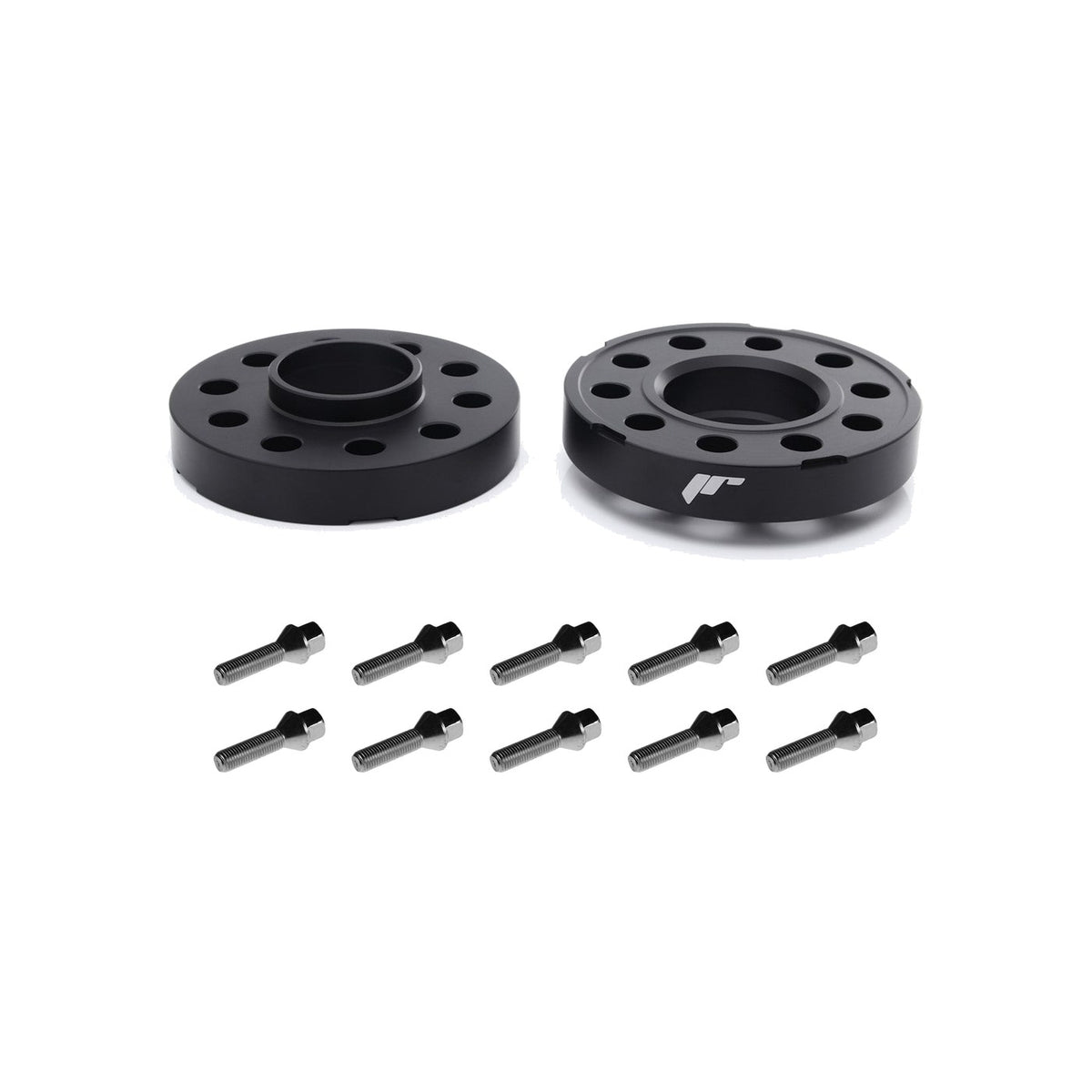

What's in the kit
- 2 hub centric spacers, 10 mm thick, that locate on the hub lip. You choose the spacer brand from the list: Let's Race or Japan Racing JRWS2.
- 10 Let's Race M12x1.5 wheel bolts with a conical seat, 40 mm long.
Specifications
| Bolt pattern | 5x120 |
| Hub bore | 72.6 mm |
| Thickness per side | 10 mm |
| Bolt thread | M12x1.5 |
| Bolt seat | conical |
| Bolt length | 40 mm |
| Kit contents | 2 spacers and 10 bolts |
Fitment
- BMW Z4: Z4M.
- The kit covers one axle. For the whole car you need two kits.
What to check when fitting
- With the 10 mm spacer fitted, a 40 mm bolt still engages 30 mm of thread in the hub.
- The conical seat has to match the wheel, not the car. An aftermarket wheel may need a different seat.
- Re-torque the wheel bolts after the first few kilometres.
Motorsport product. Intended for competition and for use off public roads, not for road traffic.
