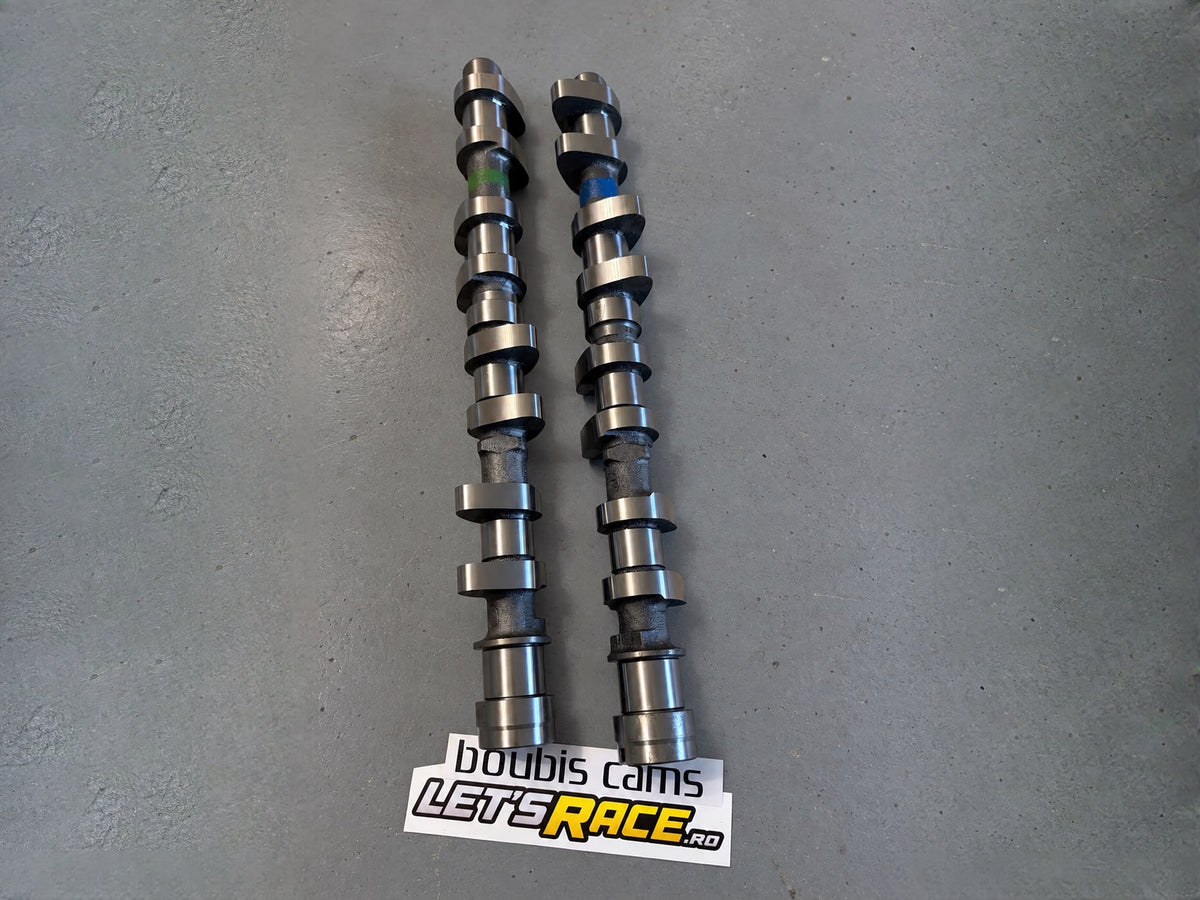

Photo shown for illustration; shade and shape may differ slightly.
Boubis Cams Camshaft Set Saxo VTS / 106 S16 / C2 VTS 1.6 16V TU5J4 / TU5JP4 260° turbo conversion - BCH17
The Boubis Cams BCH17 (turbo conversion) is a camshaft set, intake and exhaust, for TU5J4, TU5JP4 and C2 VTS engines. Advertised duration is 260° and lift is 10.5 mm, on intake and exhaust.
Specifications
| Boubis code | BCH17 (turbo conversion) |
| Engines | TU5J4, TU5JP4 and C2 VTS |
| Lift | 10.5 mm on intake and exhaust |
| Advertised duration | 260° on intake and exhaust |
| Duration at 1 mm | 223° on intake and exhaust |
| Timing | 1.2 @ 110° on intake and 0.67 @ 114° on exhaust |
| Valve clearance | hydraulic tappets |
| Contents | two camshafts, intake and exhaust |
Fitment
- TU5JP4 (NFU) engine, 1.6 16V, 110 hp: Peugeot 206, 207 (hatchback), 307, 1007, Partner; Citroen C2, C3, C3 Pluriel, C4, Xsara, Xsara Picasso, Berlingo
- Citroen C2 VTS 125 hp: TU5JP4S (NFS) engine
- TU5J4 (NFX) engine, 1.6 16V: Citroen Saxo VTS, Peugeot 106 S16
- According to the Boubis table, the profile is for TU5J4, TU5JP4 and C2 VTS.
- The same model can also have other engines, so check the engine code before ordering.
What Boubis says in the table
- Turbo conversion.
How to read the figures
- Advertised duration: the degrees of camshaft rotation the valve stays open, as stated by the manufacturer.
- Duration at 1 mm: the degrees in which the valve is lifted by more than 1 mm.
- Timing: as Boubis writes it in the table. STD means standard timing.
