Forge Motorsport Dump Valve Kit for VAG 1.5 TSI (up to 2022)

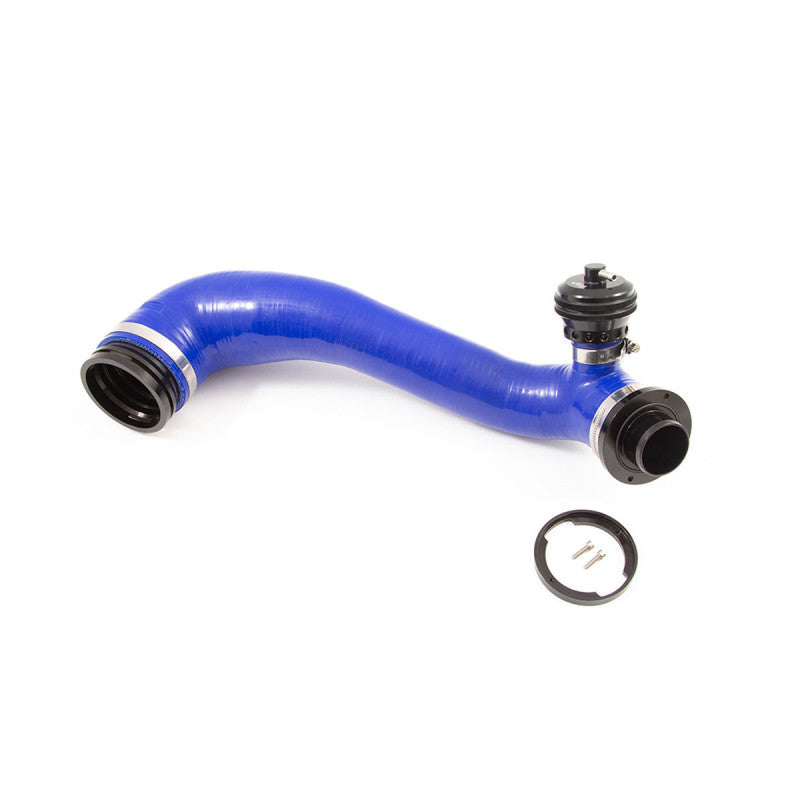

The VAG 1.5 TSI engine has no factory diverter valve. The Forge kit adds a twin piston dump valve and replaces the plastic pipe between turbo and manifold with a silicone hose.
Specifications
| Engine | VAG 1.5 TSI up to 2022, with or without breather |
| Valve | twin piston, CNC machined, atmospheric |
| Couplers | CNC machined billet |
| Hose | silicone with fluorosilicone liner |

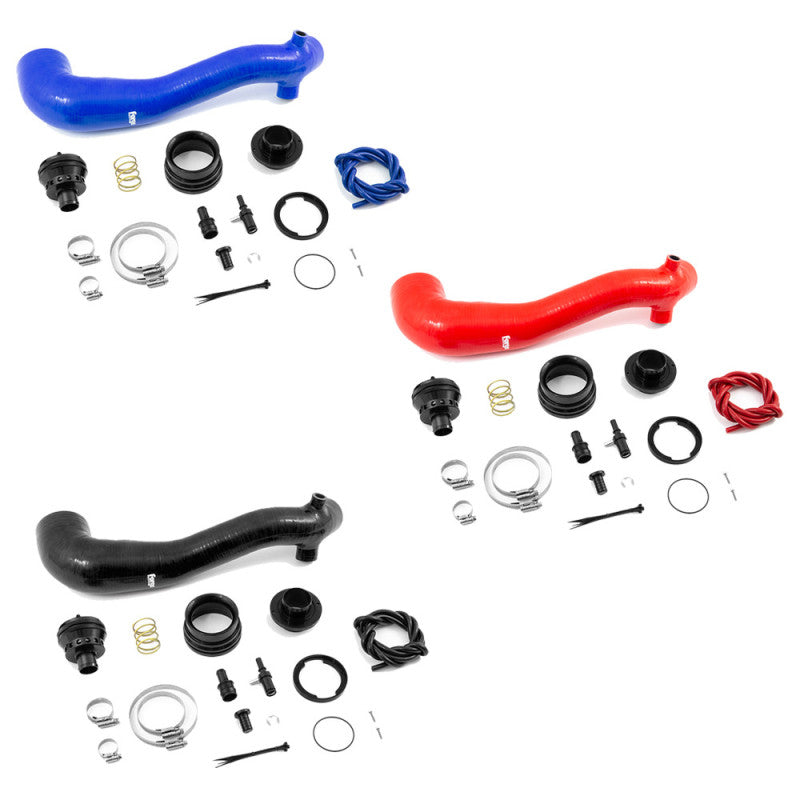

| Hose colour | red, black or blue |
| Replaces | OEM pipes 05E.145.673.E and 05E.145.674.E |

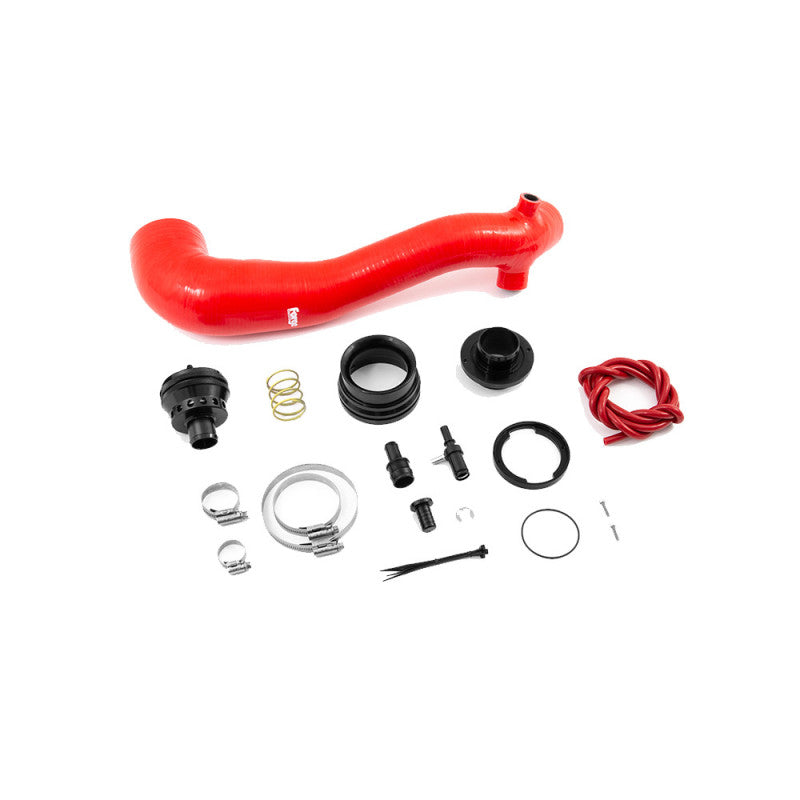

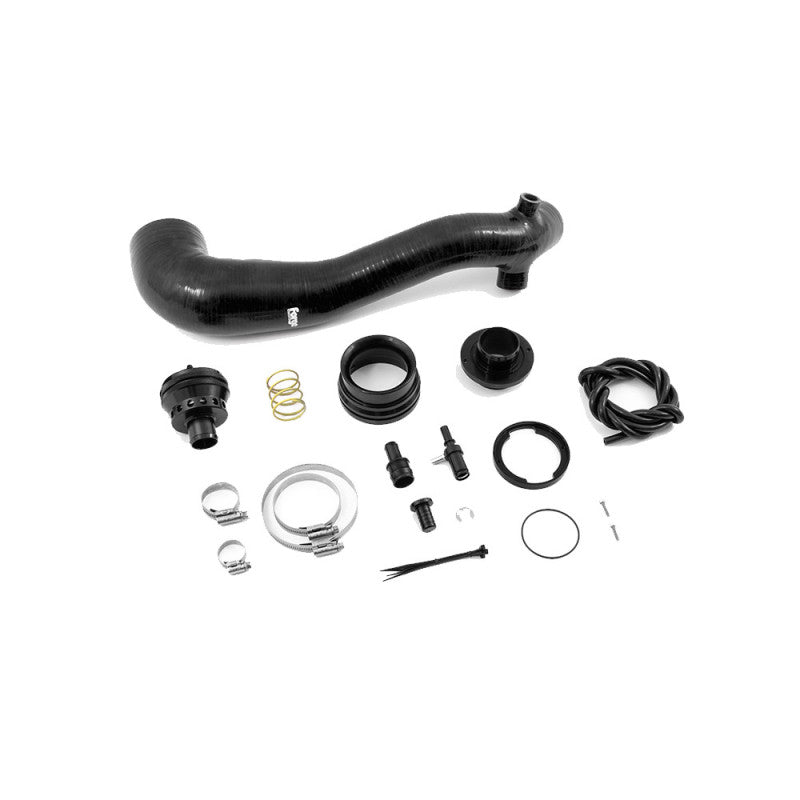

| In the box | valve, boost tap, throttle body and turbo couplers, silicone hose, 3 hose clamps, fixings, roll of vacuum hose, breather adaptor, sticker |
| Forge code | FMDV22 |
What it does
- Vents boost when you lift off and cuts turbo lag between gear changes
- Helps the turbo keep its speed and takes strain off the impeller
- The OEM plastic pipe turns brittle with heat cycles and can leak boost
- Does not trigger the engine warning light (EML)
- The fluorosilicone inner liner copes with modern long-life coolants, organic acid (OAT) coolants and air carrying oil mist
- Forge lifetime warranty
Before you order
- 1.5 TSI engines from 2022 take the Forge FMDV39 kit: check your engine before ordering
- Forge does not guarantee fitment with aftermarket intakes
- Forge recommends servicing the valve every 3 years or 20,000 miles (about 32,000 km), whichever comes first
Manufacturer code: FMDV22
Forge Motorsport Dump Valve Kit for VAG 1.5 TSI (up to 2022)
Sale price1.911,00 lei
