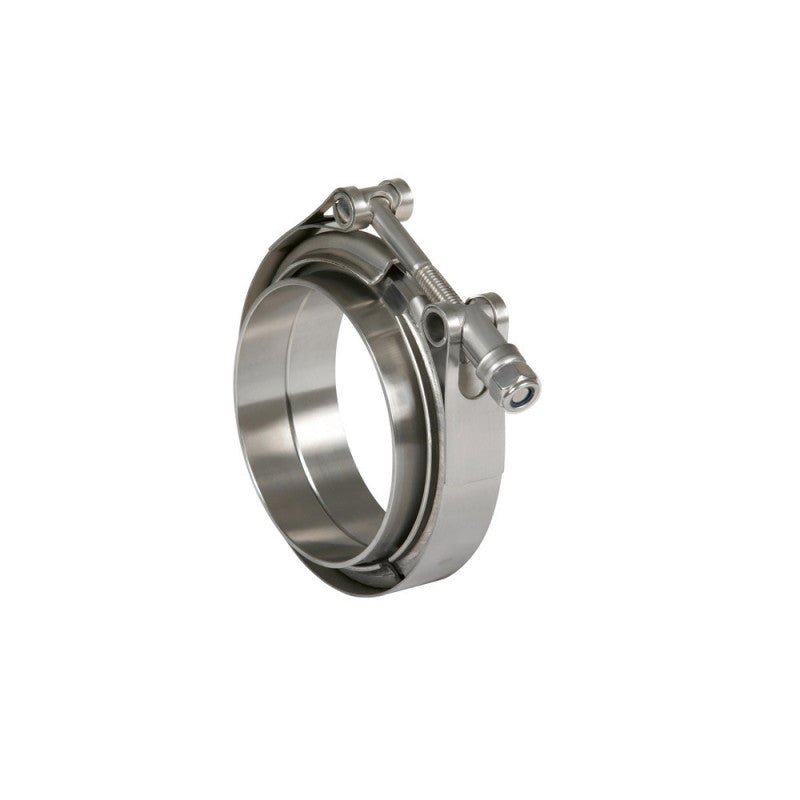

Powersprint Stainless Steel V-Band Clamp Kit with Flanges
Warehouse stock

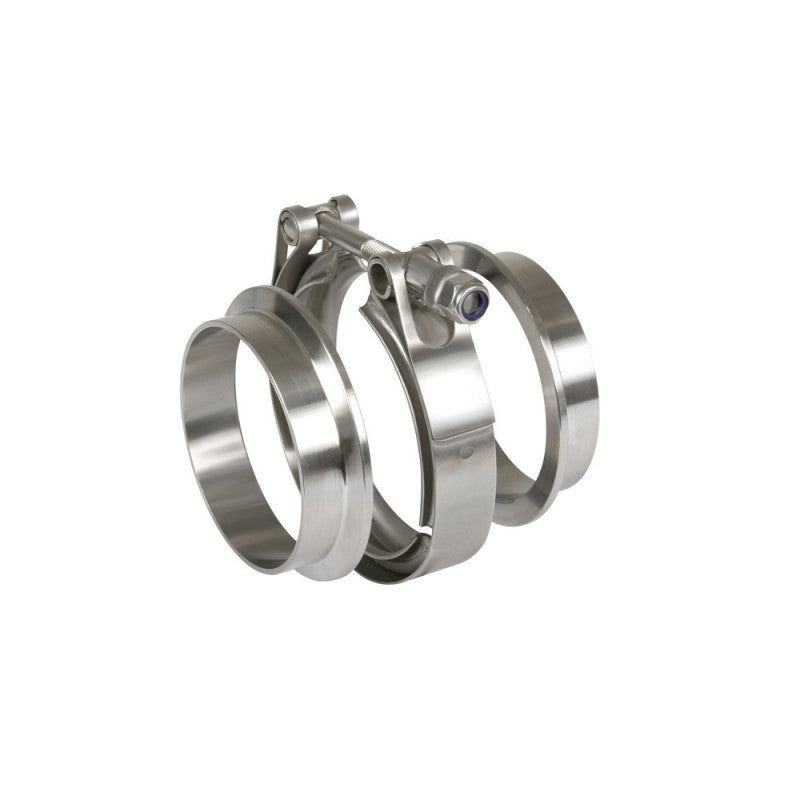

The V-band kit joins two exhaust sections without welding them to each other: the two T-flanges are welded onto the pipes, and the clamp pulls them together. The joint can be undone at any time.
Specifications
| Contents | 2 T-flanges and 1 V-band clamp |

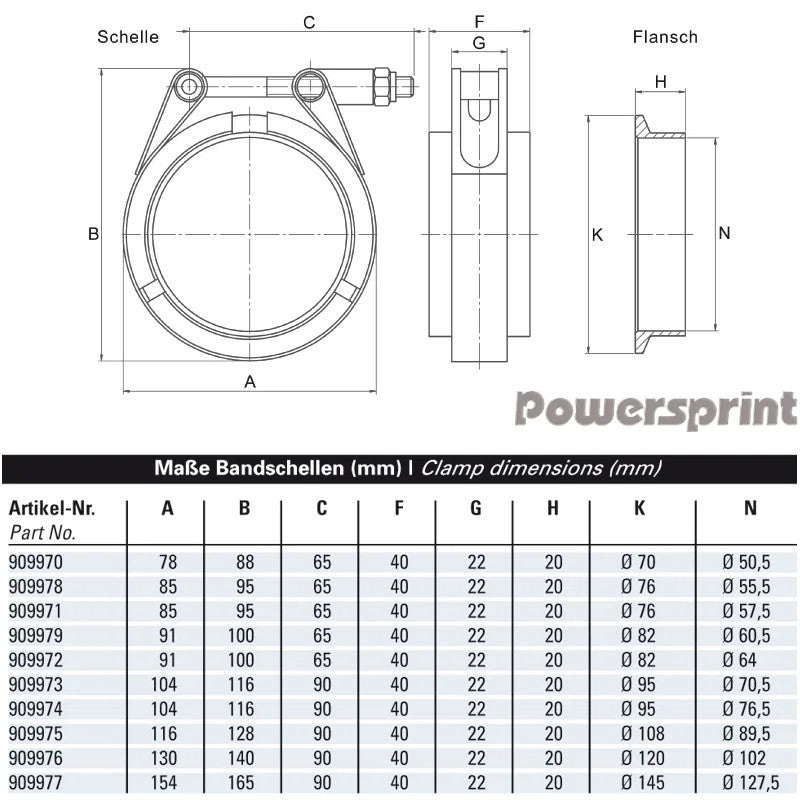

| Diameters | from 50 to 127 mm, plus 65 and 70 mm with compact flange |
| Flanges | stainless steel, machined from solid, with ground faces |
| Clamp | stainless steel, 8 mm zinc plated hardened bolt |
| Sealing | high temperature sealing paste is enough |
Where it goes
- On exhaust joints that have to come apart without cutting.
- The size is the diameter of the pipe the flange is welded onto.
- The compact flange has a smaller outside diameter and takes a 2.75 inch clamp instead of a 3 inch one. It suits places where there is little room around the pipe.
- Dimensions are approximate: cutting and welding leave small differences from one piece to the next.
Powersprint Stainless Steel V-Band Clamp Kit with Flanges
Sale price257,00 lei
