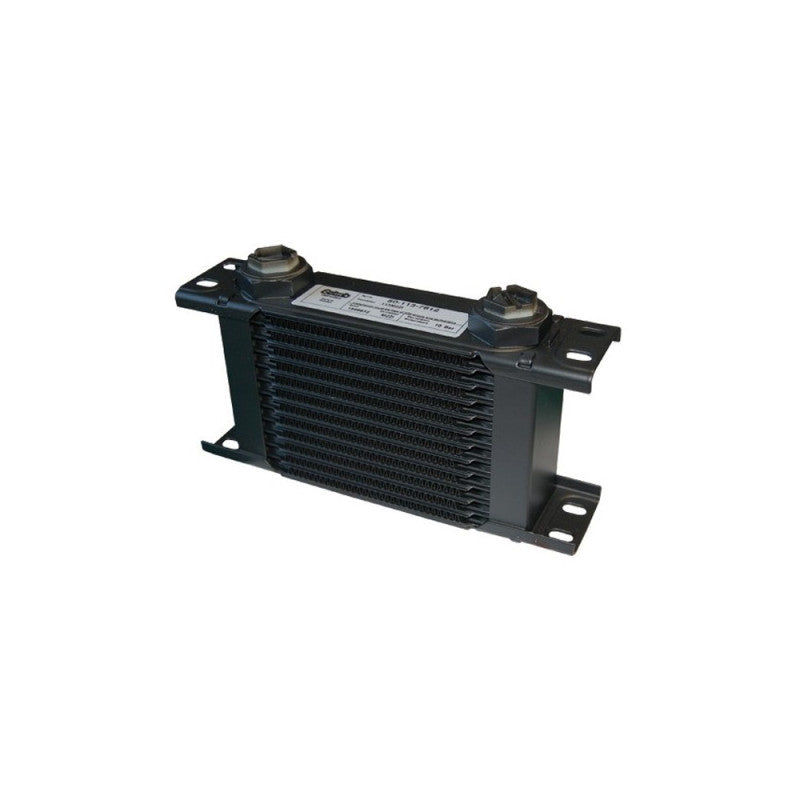

Setrab Series 1 Oil Cooler - 7 Rows - M22x1.5
Warehouse stock
Setrab Series 1 oil cooler with 7 rows and M22x1.5 connections. Series 1 has the narrow core, 115 mm wide.

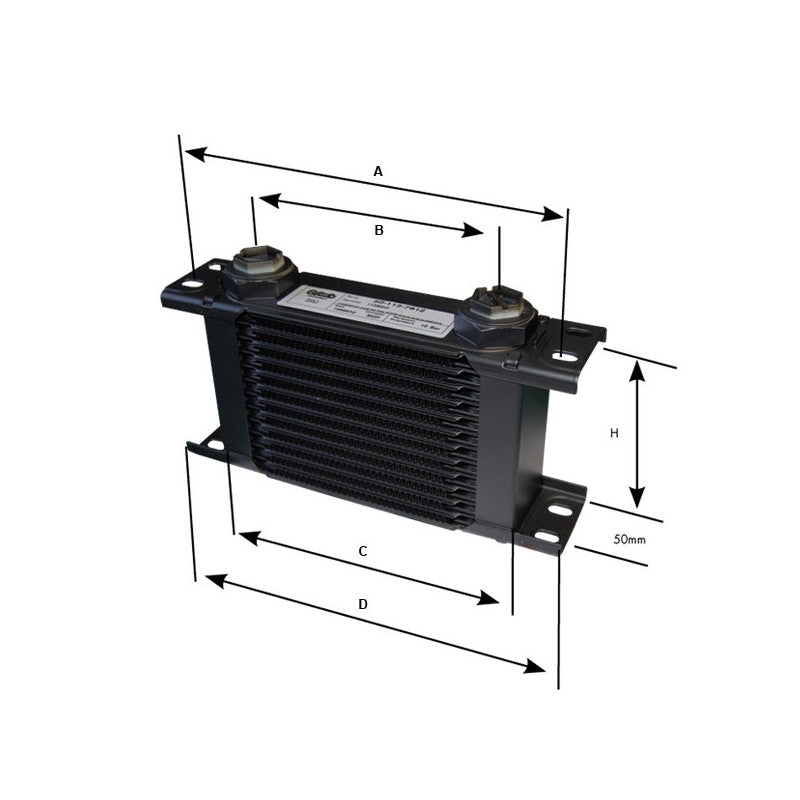

Specifications
| Series | Setrab Series 1 (ProLine STD) |
| Rows | 7 |
| Core width | 115 mm |
| Core height | 52 mm |
| Core depth | 50 mm |
| Length with tabs | 210 mm |
| Connections | M22x1.5 female, maximum torque 40 Nm |
| Working pressure | 0-10 bar, burst at 37 bar |
| Temperature | -40 to 150 °C |
| Volume | 0.08 l |
| Weight | 0.31 kg |
| Setrab code | 107M22I |
Good to know
- Same size in Series 6: Setrab Series 6 7 row oil cooler.
