Photos shown for illustration; shade and shape may differ slightly.
Let's Race PRO V2 Steel Side Seat Mounts, 3 mm, 485 mm
In stock
This product is in our warehouse, ready to ship.

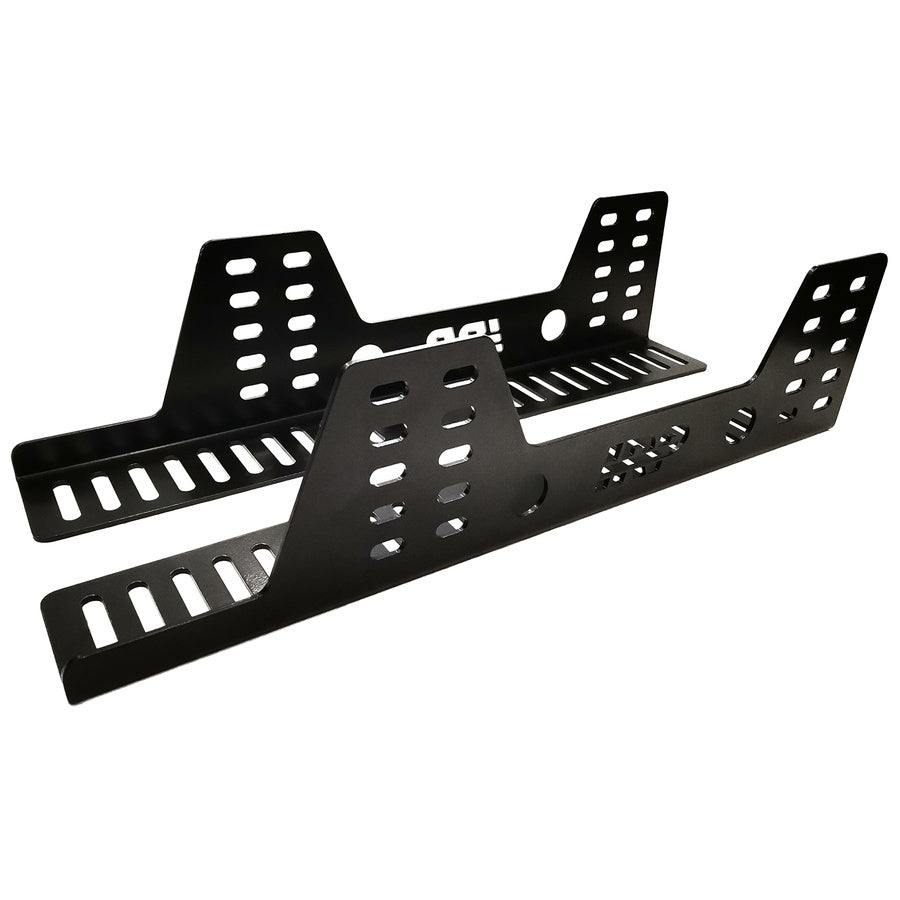

The PRO V2 side mounts hold a bucket seat to the floor and are made from 3 mm steel, powder coated. There are two of them, one for each side of the seat.
Specifications
| Material | steel, 3 mm thick |
| Finish | powder coated, black |
| Length | 485 mm |
| Height | 125 mm |
| Base width | 75 mm |
| Seat holes | two groups of 2 x 5, at 285 mm and 320 mm |
| Height adjustment | 5 steps, 20 mm apart |
| Weight | 2.9 kg |
| Compliance | FIA Appendix J, as declared by the manufacturer |
| Part number | LR0620 |

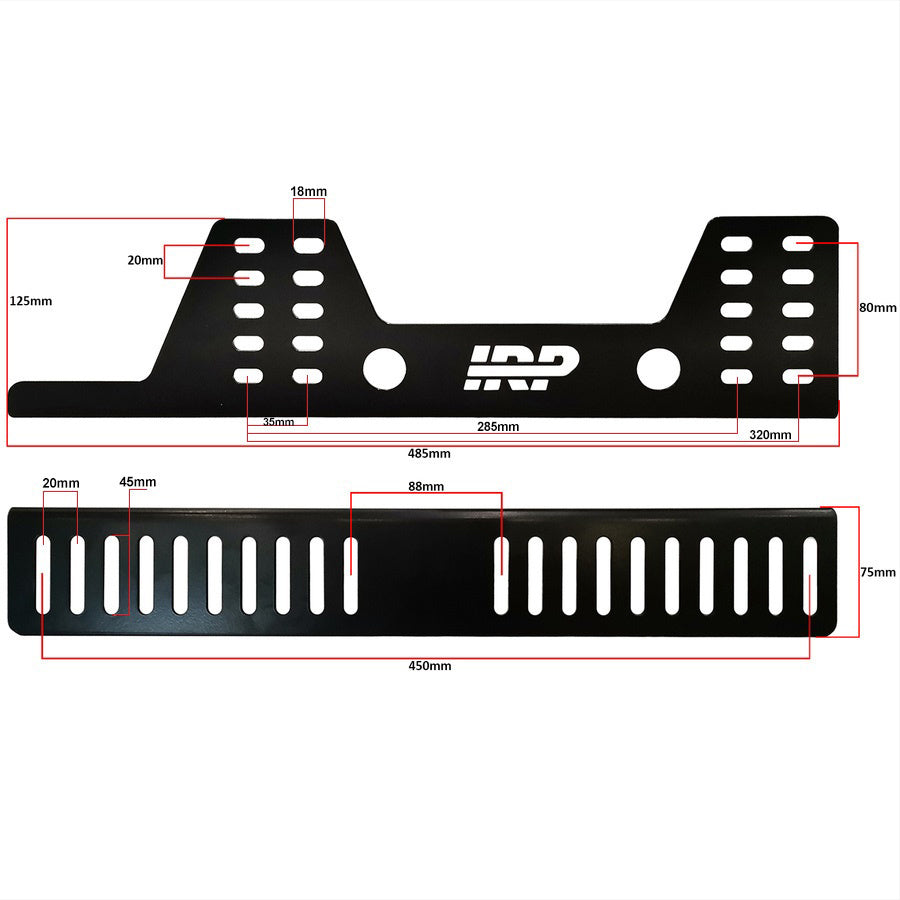

How it fits
- The seat bolts on from the side, in one of the five rows of slotted holes, so you set the seat height without extra parts.
- The 75 mm base has slotted holes along its whole length, 450 mm end to end, to line up with the mounting points in the floor.
- Front to rear hole spacing is 285 mm on the inner column and 320 mm on the outer one.
Before you order
Measure the spacing of your seat's side holes: the mounts cover 285 to 320 mm. The manufacturer sheet does not list bolts in the box, so do not count on them.
Let's Race PRO V2 Steel Side Seat Mounts, 3 mm, 485 mm
Sale price205,00 lei
