Photos shown for illustration; shade and shape may differ slightly.

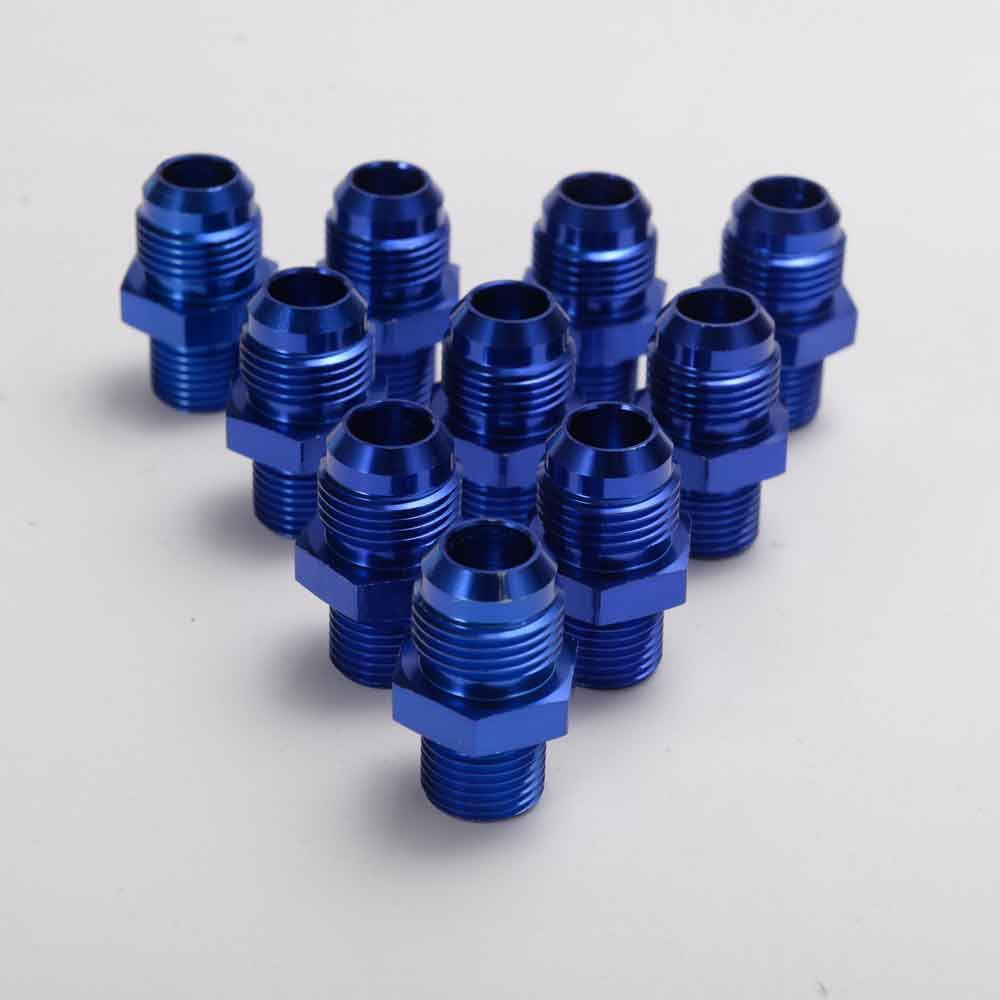

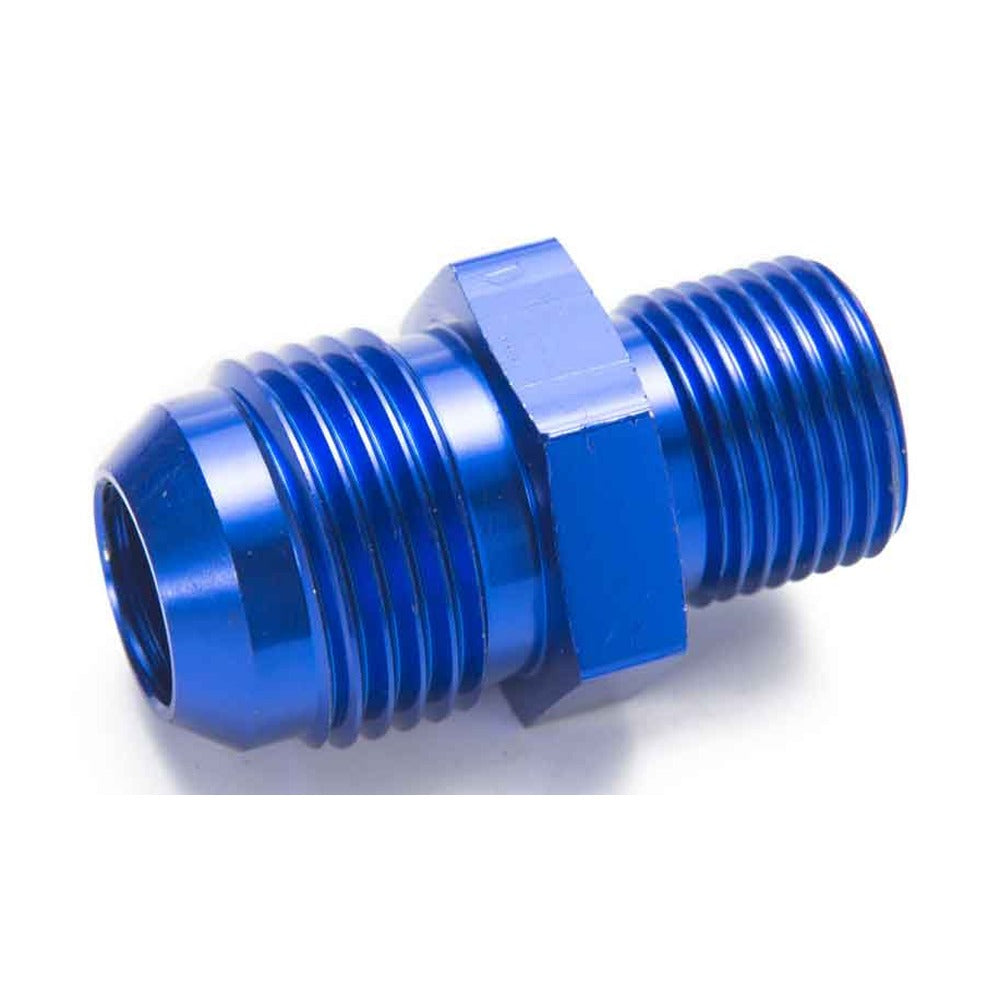

Straight AN10 to M18x1.5 Male Adapter, Blue Aluminium, Let's Race
In stock
This product is in our warehouse, ready to ship.
The adapter goes from an AN10 fitting, sealing on a 37 degree flare, to the M18x1.5 thread of a pump, filter or cooler. It is male on both ends, in anodised aluminium.
Specifications
| Type | straight adapter, male to male |
| Ends | AN10 (7/8-14 UNF) to M18x1.5 |
| AN side sealing | 37 degree flare |
| Material | 6061-T6 aluminium, blue anodised |
| Working pressure | 1500 PSI (103 bar) |
| Working temperature | -54 ... +122 C |
| Sold | per piece |
Application
- Connects an AN10 hose to a component with an M18x1.5 thread: fuel rail, fuel pump, filter, oil cooler.
- For fuel and oil; the AN side takes a female AN10 hose end.
Fitting
- Measure the component thread before ordering: the adapter has M18x1.5 on the non-flare side.
Straight AN10 to M18x1.5 Male Adapter, Blue Aluminium, Let's Race
Sale price30,00 lei
