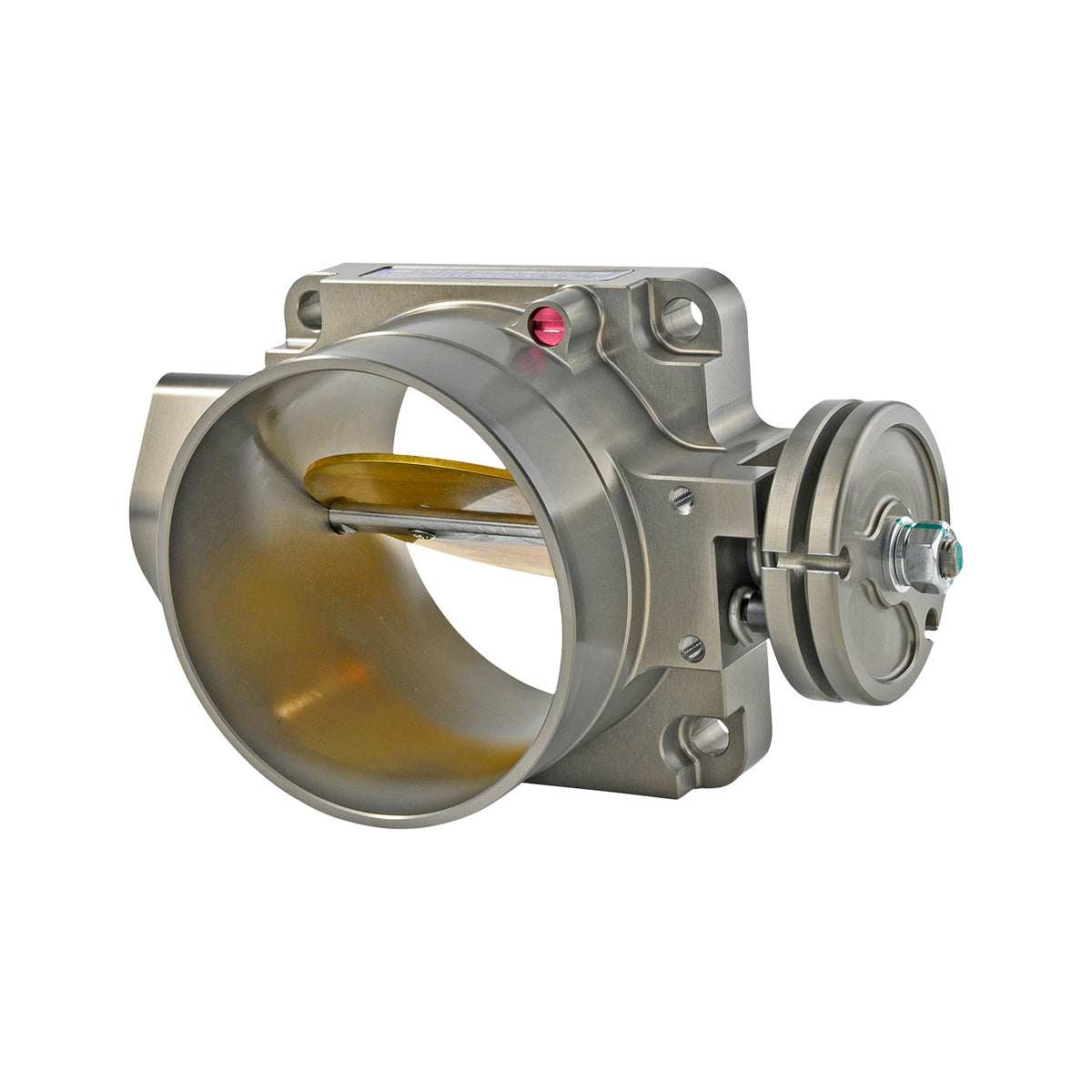

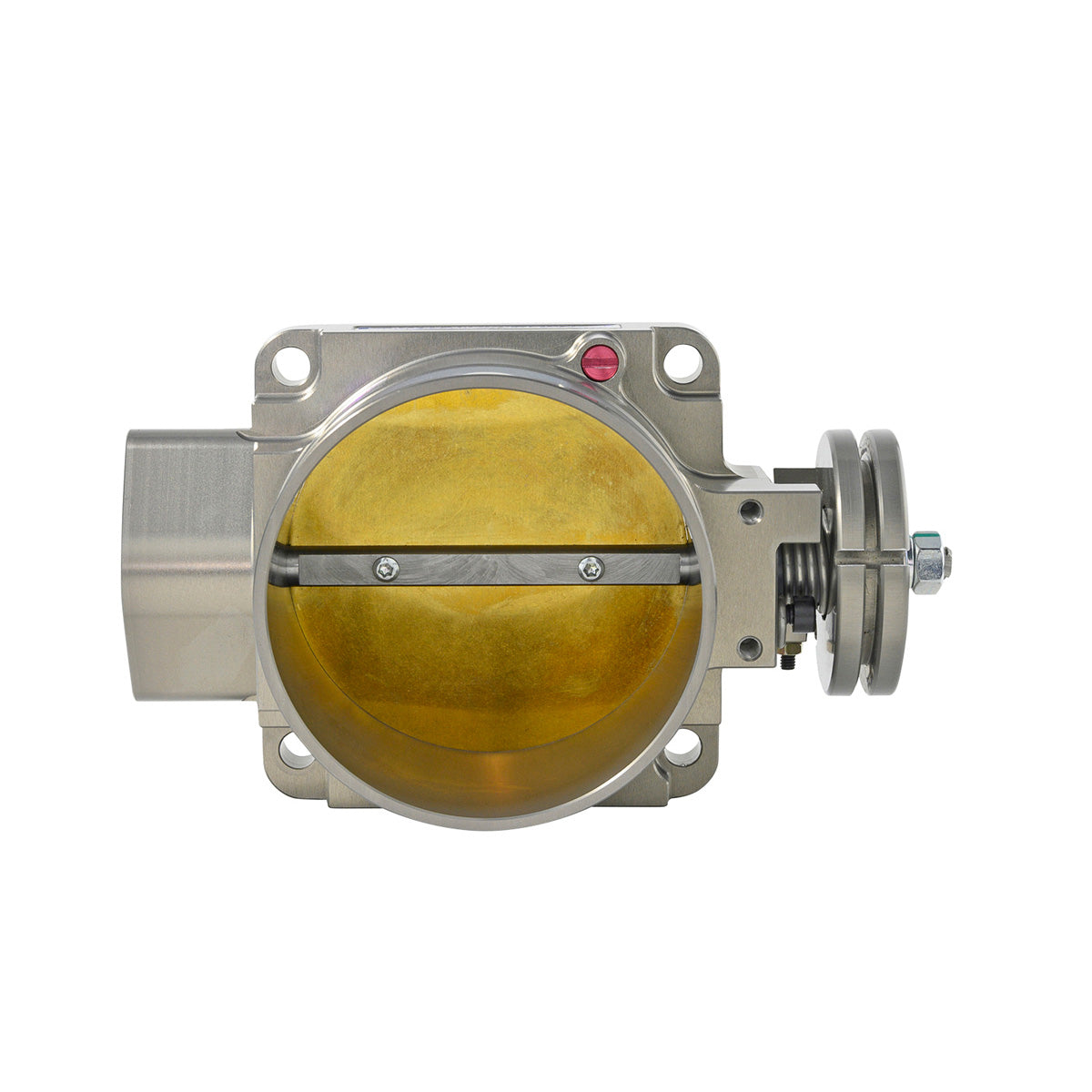

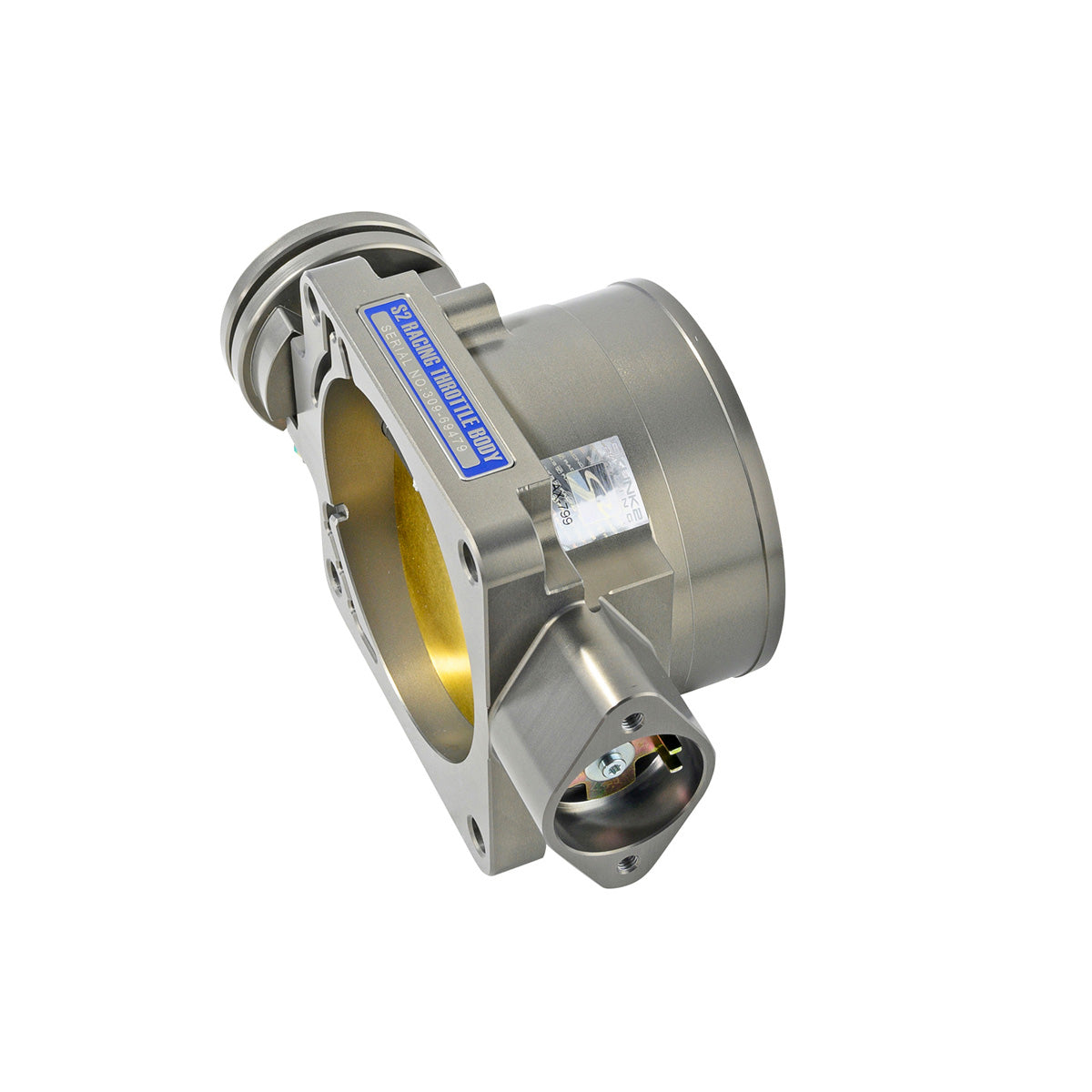

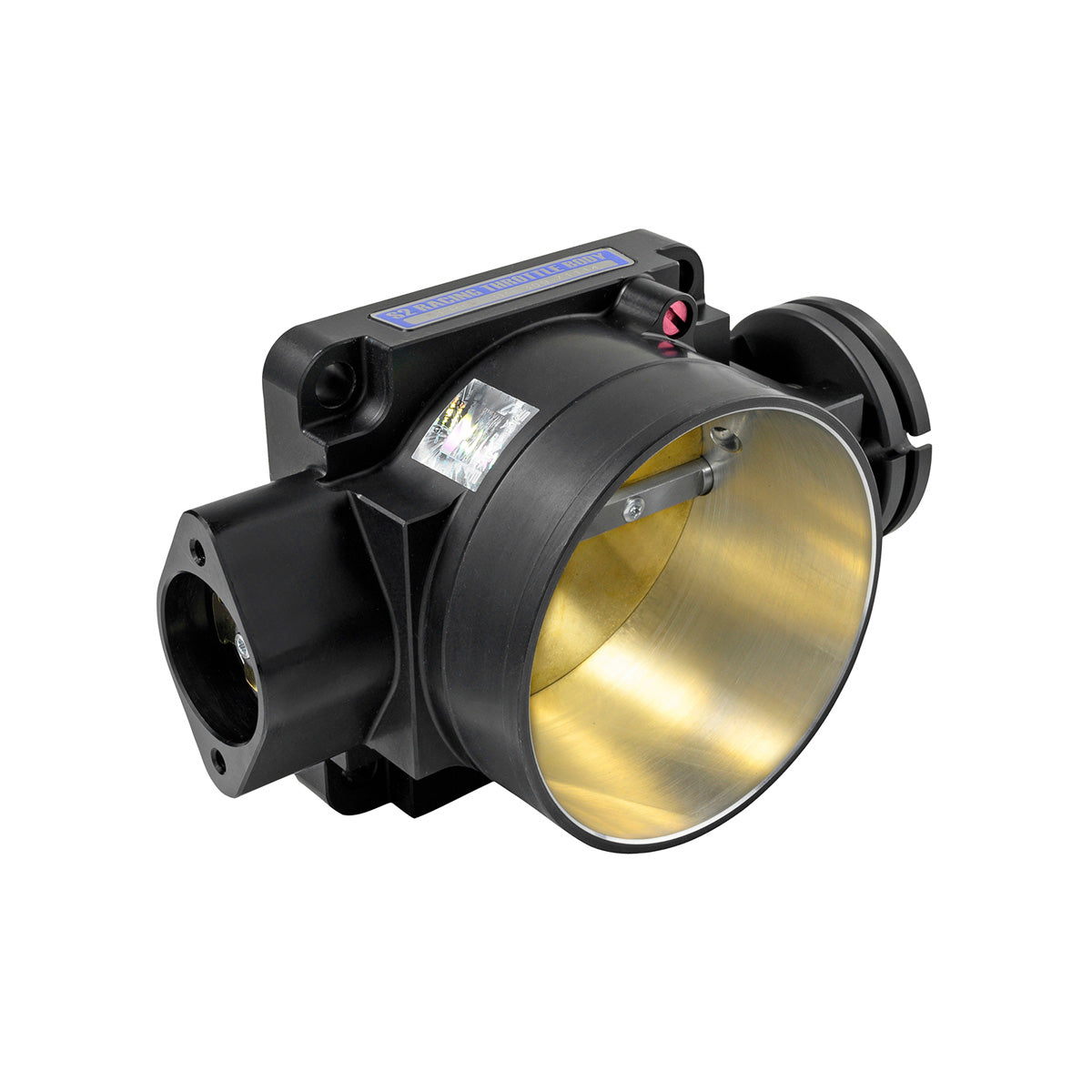

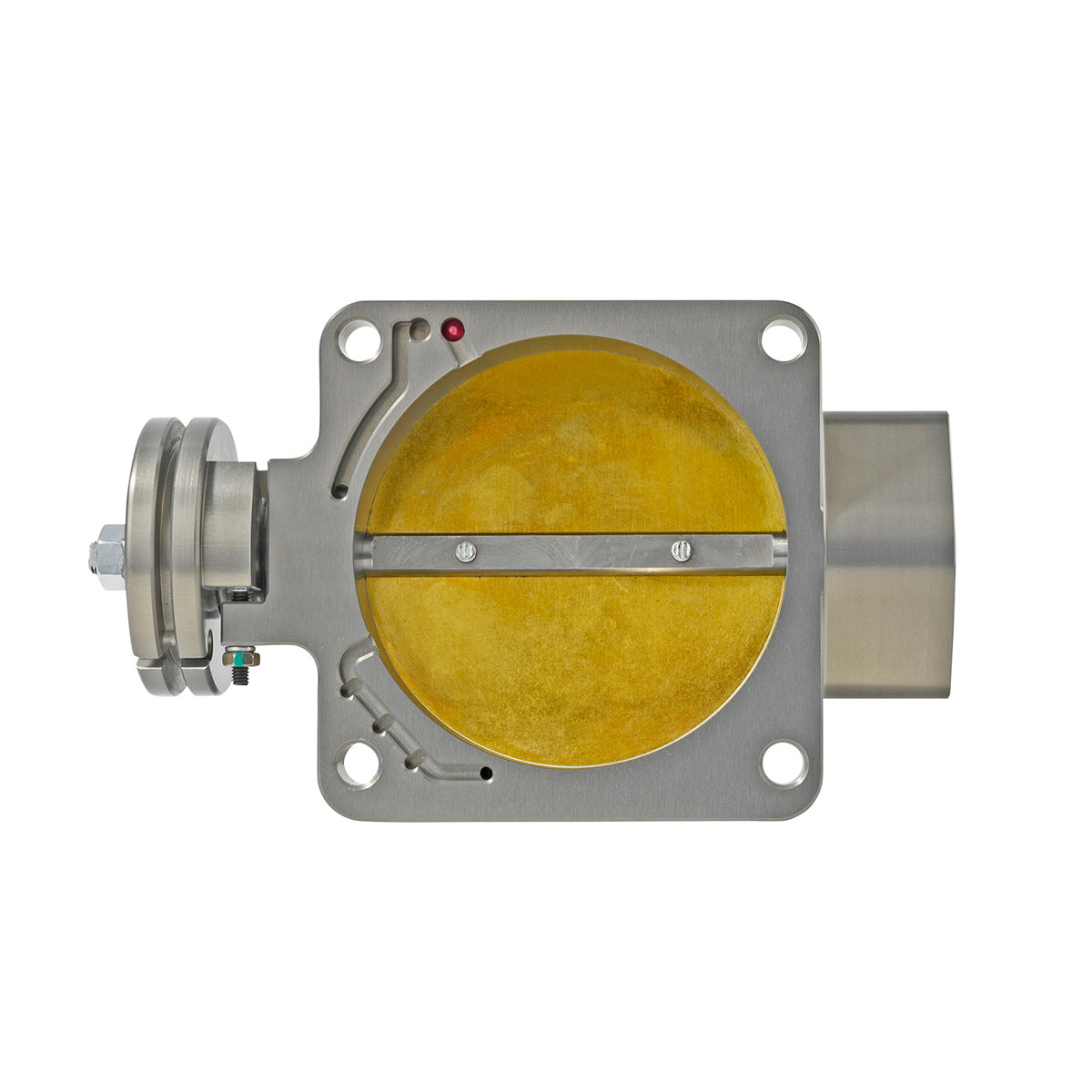

Skunk2 Pro Series Throttle Body 90 mm for Skunk2 Ultra Race manifolds (90 mm)
The Skunk2 Pro Series throttle body has a larger bore than the factory unit, 90 mm, for modified Skunk2 Ultra Race manifolds (90 mm) engines that need more air. It works with the factory throttle cable.
Specifications
| Brand | Skunk2 Racing |
| Code | 309-05-0900, 309-05-0905 |
| Bore | 90 mm |
| Material | Forged billet 6061-T6 aluminium, CNC machined, hard anodised |
| Throttle plate | Precision machined brass |
| Shaft | Sealed ball bearings |
| Included | New gasket and hardware |
| Bolt pattern | Ford Mustang 5.0 |
Which cars it fits
- Skunk2 Ultra Race manifolds, with the 90 mm Ford 5.0 flange (3.45 in centre to centre)
What to check
- It has the Honda MAP and TPS sensor patterns and a Honda throttle cable friendly pulley.
- Eliminates the factory coolant lines.
Skunk2 Pro Series Throttle Body 90 mm for Skunk2 Ultra Race manifolds (90 mm)
Sale price2.585,00 lei
