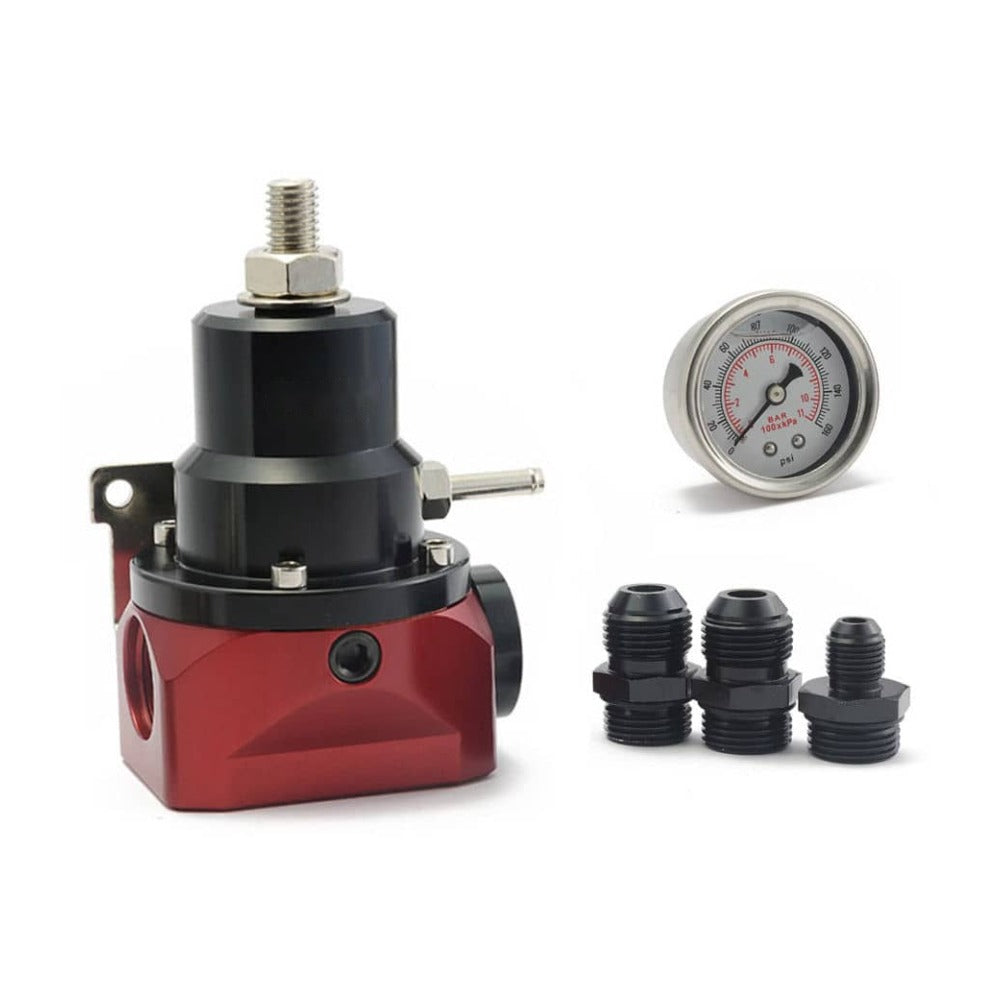

Adjustable Fuel Pressure Regulator with Gauge, AN10 / AN6, Let's Race
In stock
This product is in our warehouse, ready to ship.
The regulator holds rail fuel pressure steady and you set it with the screw, from 35 to 80 PSI. The vacuum port references it to manifold pressure.
Specifications
| Adjustment | 35 ... 80 PSI (2.4 ... 5.5 bar) |
| Feed ports | two, AN10 |
| Return | AN6 |
| End cap | AN10, for the unused feed |

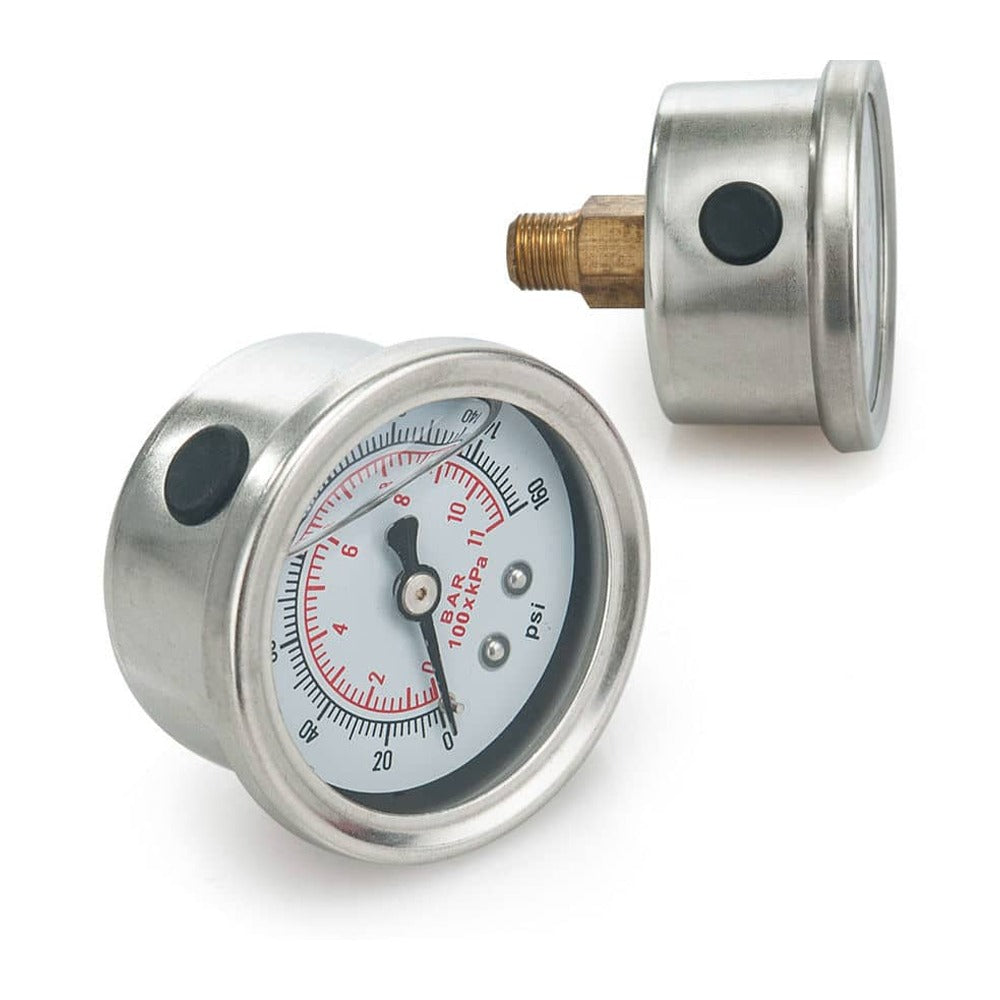

| Gauge | included, on the 1/8 NPT port |
| Vacuum / boost port | yes, for turbo or supercharged engines |
| Material | 6061-T651 billet aluminium, black and red |
| Fuel | E85 compatible |
| Bracket | included |
Application
- On return-style fuel systems, between the rail and the return line to the tank.
- The AN10 and AN6 fittings included connect straight to braided hose.
