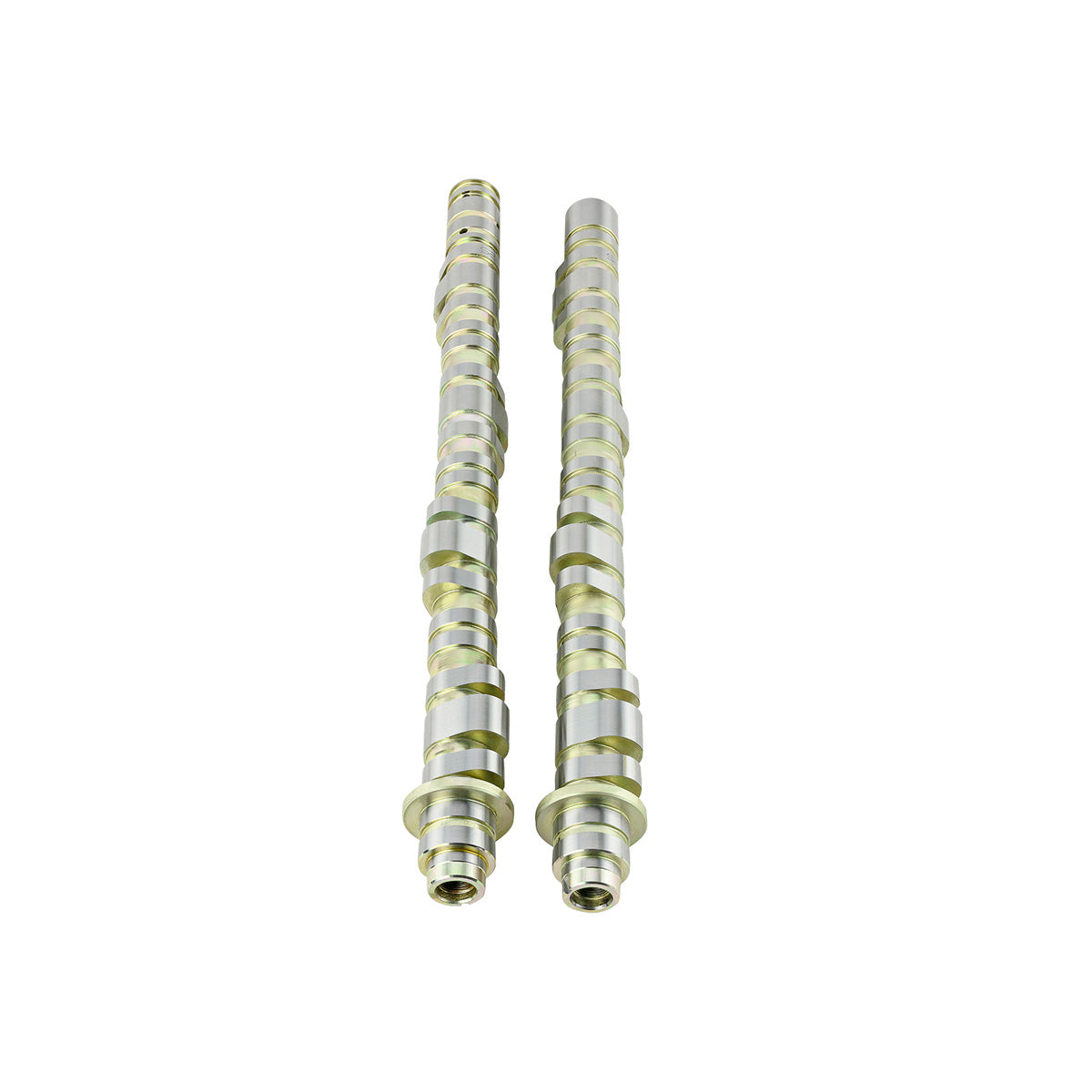

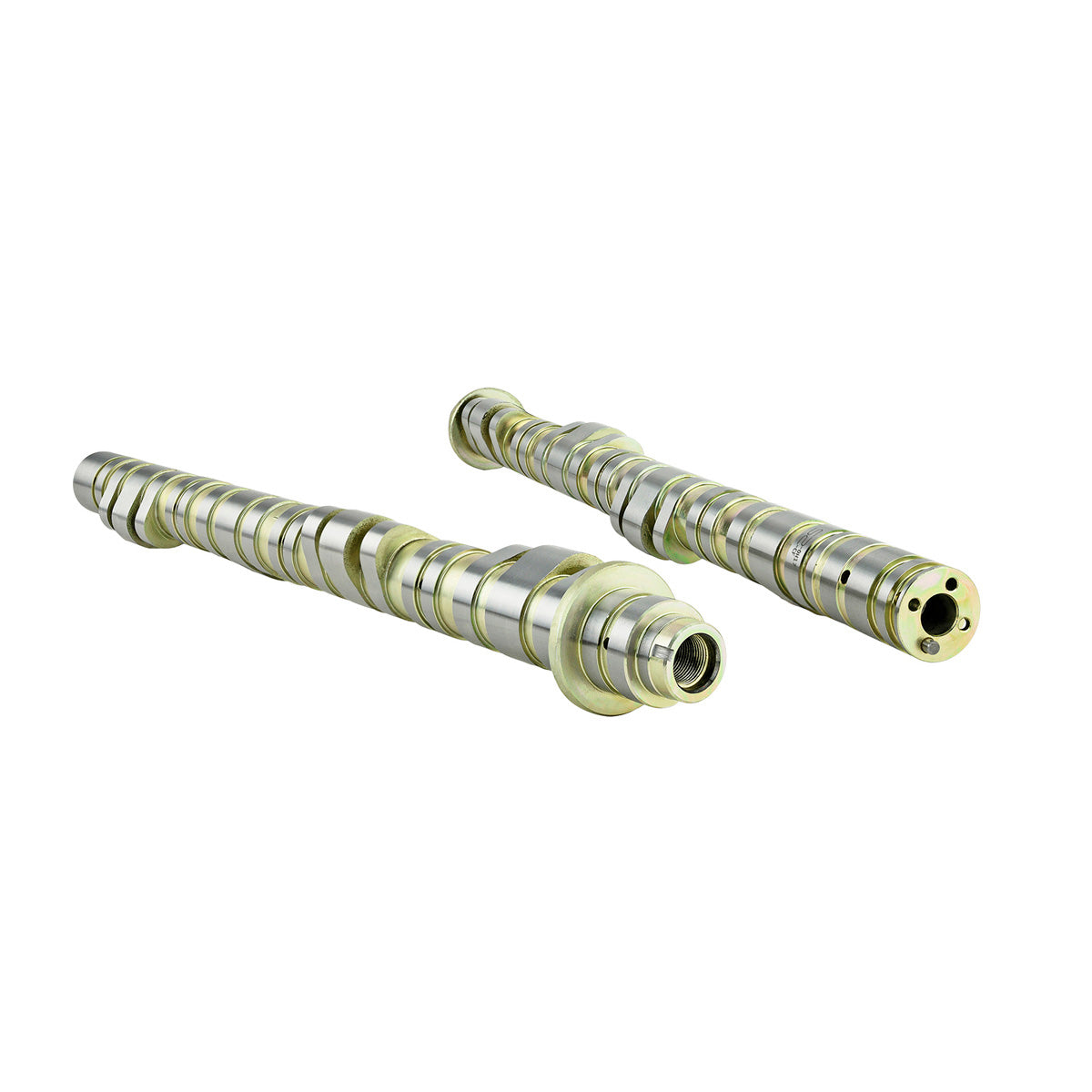

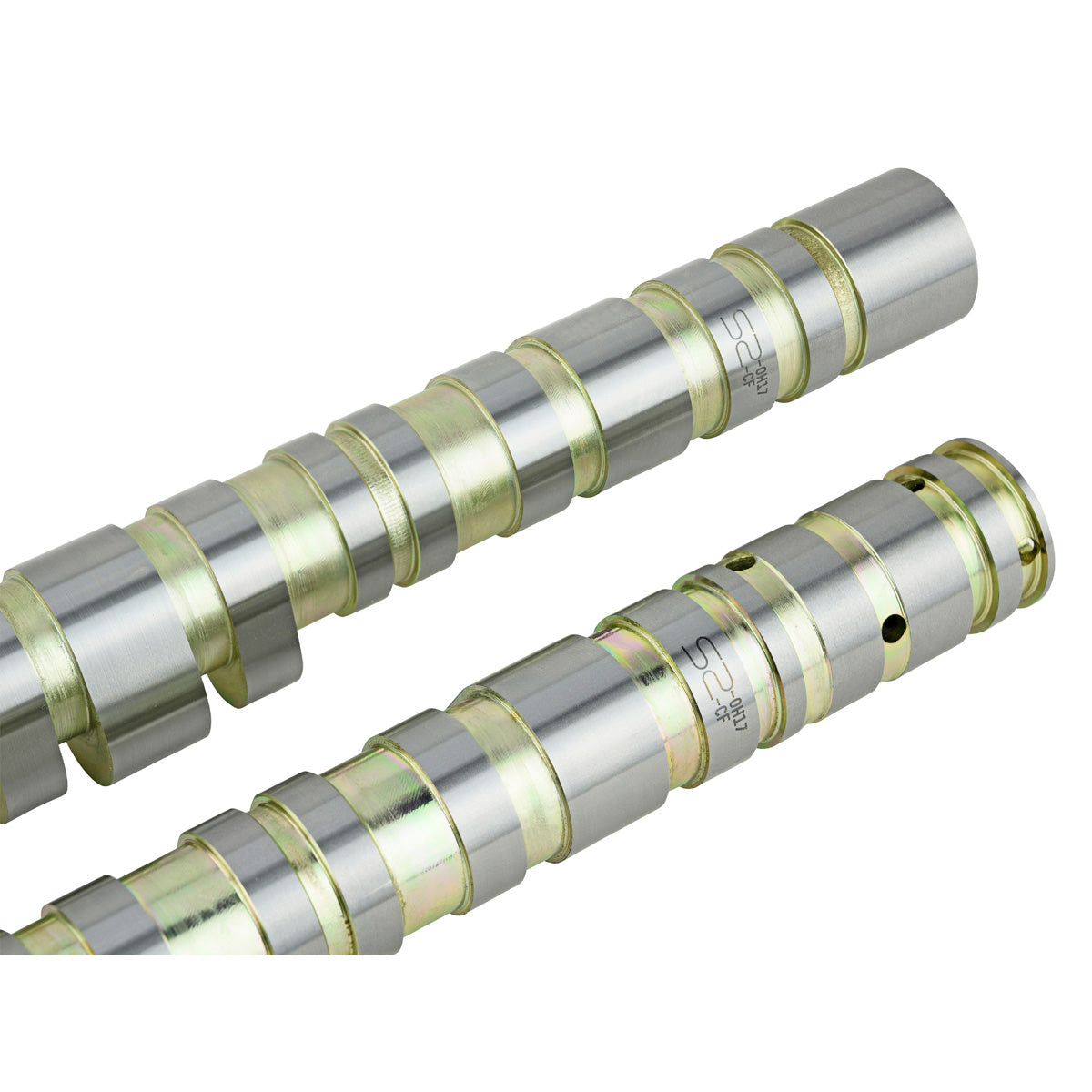

Skunk2 Ultra Stage 1 Camshafts for Honda K20 and K24 Engines
Supplier stock
The Ultra Series is Skunk2's motorsport line for Honda K20 and K24 engines with 3-lobe VTEC: forged tool steel cores, CNC ground. Stage 1 has 13.7 mm intake lift.
Specifications
| Brand | Skunk2 Racing |
| Code | 305-05-7010 |
| Material | Forged tool steel, 3 lobes |
| Intake | 13.7 mm (0.540 inch) lift |
| Exhaust | 13.5 mm (0.530 inch) lift, 111 degree centreline |
| Valve clearance | 0.008 inch intake, 0.010 inch exhaust |
| Engines | Honda K20 and K24 |
Which cars it fits
- Honda K20A, K20A2, K20Z1, K20Z3 and K24A2 engines with 3-lobe VTEC
- Honda Civic Type R EP3 (K20A2)
- Honda Integra and Acura RSX DC5
- Honda Civic Si with the K20Z3 engine
What to check
- Skunk2 requires titanium retainers (308-05-0410). Pro XP valve springs (311-05-7380) are listed under requirements, marked as recommended for turbo applications.
- Recommended by Skunk2: Pro adjustable cam gear on the exhaust (304-05-0275) or on both cams (304-05-0300).
- Skunk2 quotes gains of up to 80 hp for the Ultra Series on heavily modified engines.
Skunk2 Ultra Stage 1 Camshafts for Honda K20 and K24 Engines
Sale price8.082,00 lei
