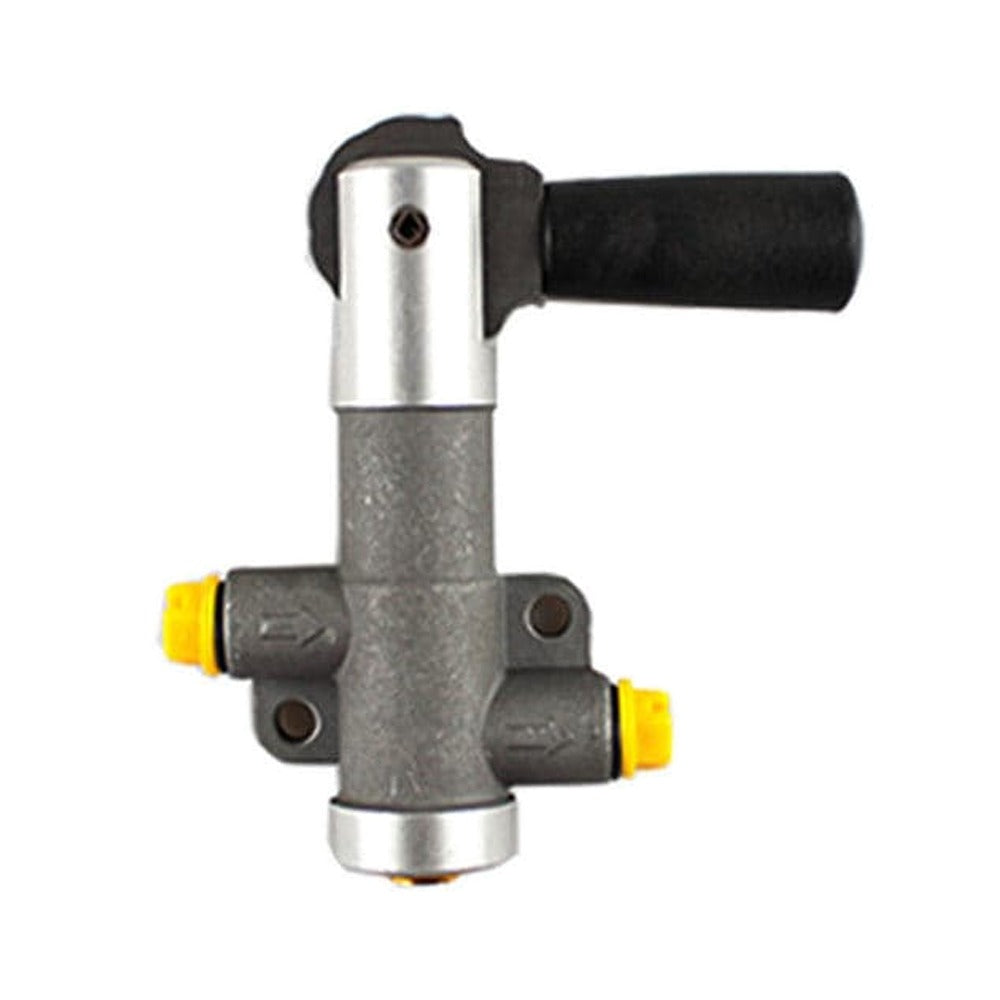

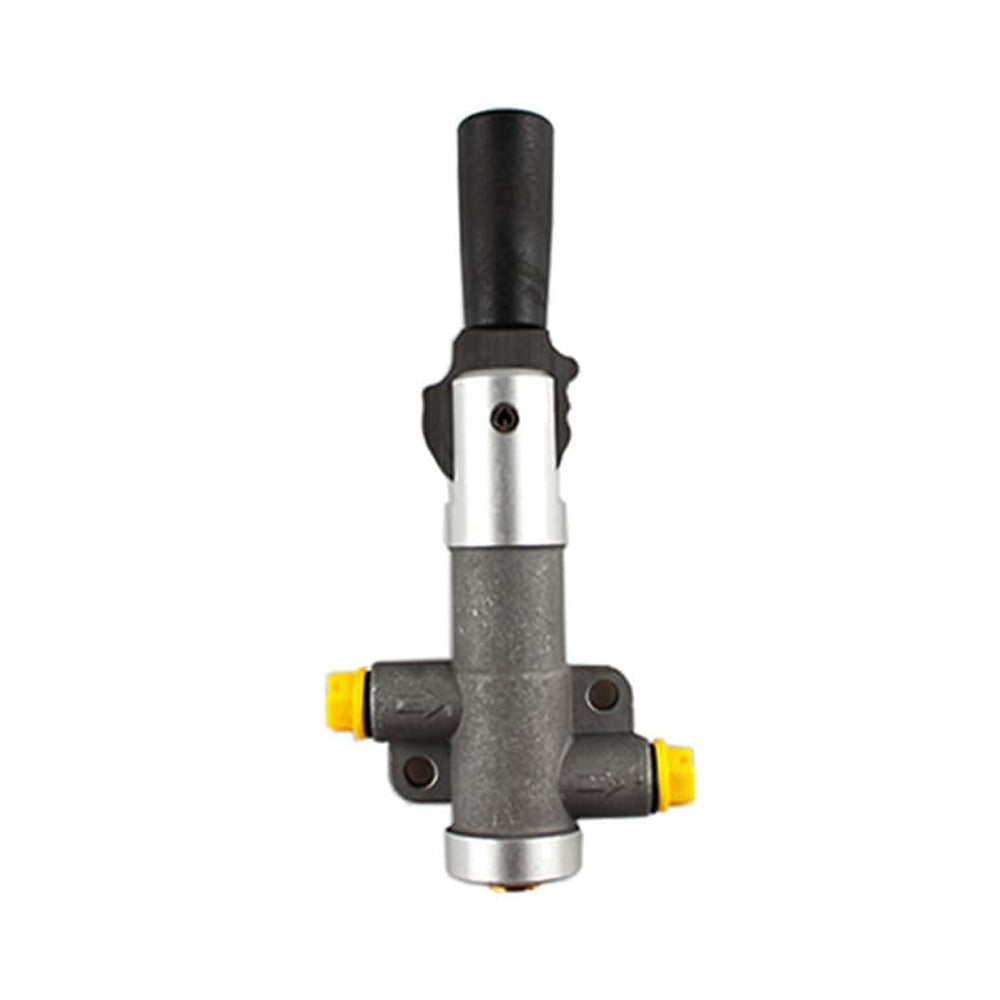

Repartitor Frana cu Maneta 7 Pozitii M10x1 Let's Race
Repartitor Frana cu Maneta 7 Pozitii M10x1 Let's Race

Photos shown for illustration; shade and shape may differ slightly.

Let's Race

Lever Type Brake Bias Valve 7 Settings M10x1 Let's Race

Sale price650,00 leiVAT included
In stock
This product is in our warehouse, ready to ship.

The valve fits in the rear brake line and reduces the pressure reaching the rear calipers. It has 7 fixed settings, so you change the brake bias from the lever without looking at the part.

Specifications

Type lever type valve, single bore
Settings 7
Nominal ratio 0.325
Ports M10x1.0, spotfaced 17 mm
Mounting 2 holes for M6 bolts, counterbored 11 mm, 40 mm apart
Body height 105 mm
Height with lever 167 mm
Body width 31 mm
Brake fluid DOT 3, DOT 4 or DOT 5.1

Output pressure at 100 bar input

Setting Nominal pressure
1 38 bar
2 44.5 bar
3 50 bar
4 55 bar
5 60.5 bar
6 66.5 bar
7 73 bar

Application

  • It goes in the rear brake line: the inlet comes from the master cylinder, the outlet goes to the calipers. The arrows cast on the body show the flow.
  • In setting 7 the rear pressure is barely reduced. Each lower setting reduces it progressively and moves the bias to the front.
  • Set the base brake balance of the car towards the rear, so that setting 7 gives all the rear braking you need. The other six settings are for adjustment during the race.
Fitting and warnings
  • The internal adjustment is set at the factory: do not strip or modify the valve.
  • Competition part, for circuit, rally and track day cars.
