Diferential autoblocant cu discuri MFactory pentru Nissan 180SX
Diferential autoblocant cu discuri MFactory pentru Nissan 180SX

Photos shown for illustration; shade and shape may differ slightly.

MFactory

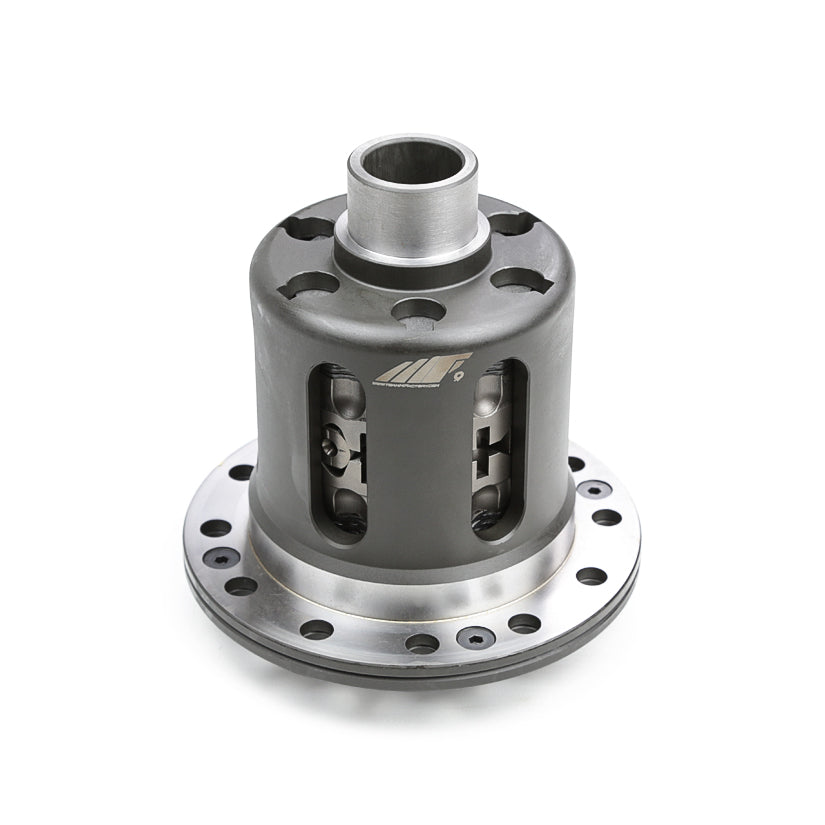

MFactory Metal Plate LSD for Nissan 180SX

Sale price7.033,00 leiVAT included
Supplier stock

The MFactory metal plate LSD locks the driven wheels through packs of friction plates, pressed by ramps and preload springs. Unlike a helical unit, it keeps locking when one wheel loses grip, which is why it is made for dedicated circuit, rally and drift cars.

Specifications

Brand MFactory
Code MF-TRS-10S14K (1.0 way)
Type Metal plate limited slip differential
Material SAE 4320 steel, forged, double tempered, sub-zero treated and shot peened
Spider gears Cold forged, ceramic coated: 30% higher surface hardness
Preload Coil springs, around 85 lb as supplied; changed by the number of springs
Ramps 1.0 way 45/0 or 55/0 degrees

Which cars it fits

  • Nissan 180SX (RPS13) with SR20DET, 1997-1999

What to check

  • 1.0 way locks on acceleration only. 1.5 way locks on acceleration and partly under engine braking. 2.0 way locks equally on and off throttle.
  • The 1.0/1.5 version ships set to 1.5 way and the 1.5/2.0 version ships set to 2.0 way, both with plates stacked for 100% lock. Switching ramps requires opening the differential.
  • Preload, ramp angle and lock percentage are adjustable without special tools, with the gearbox removed.
  • The plates wear: MFactory asks for their thickness to be checked at every service, minimum 1.58 mm. Replacement plates and preload springs are sold separately.
  • MFactory recommends: on rear-wheel drive, 1.0 or 1.5 way for road and circuit, 2.0 way for drifting.
