Skunk2 Pro Series Intake Manifold for Honda K20A, K20A2, K20Z1 and K24 (PRB flange) Engines
Supplier stock

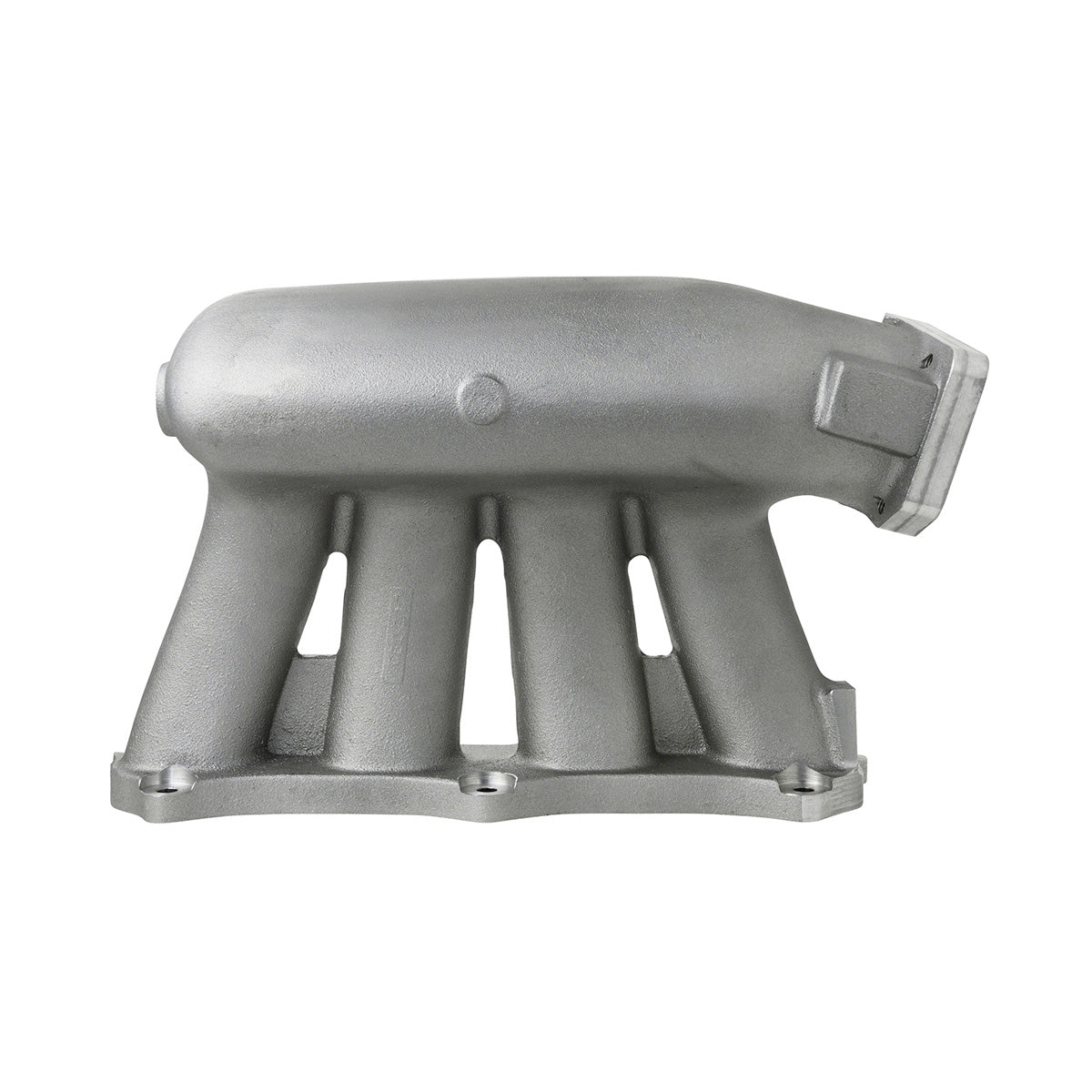

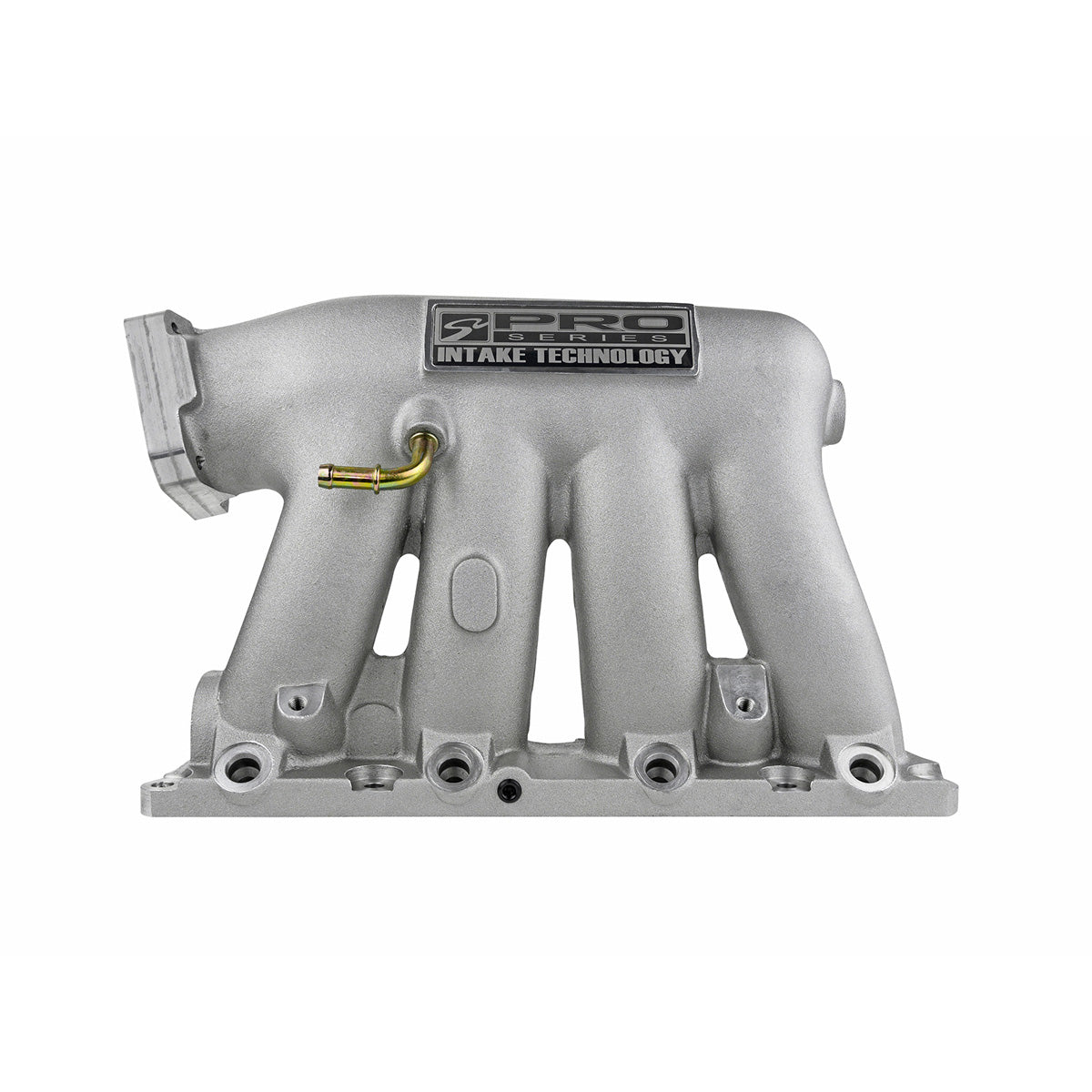

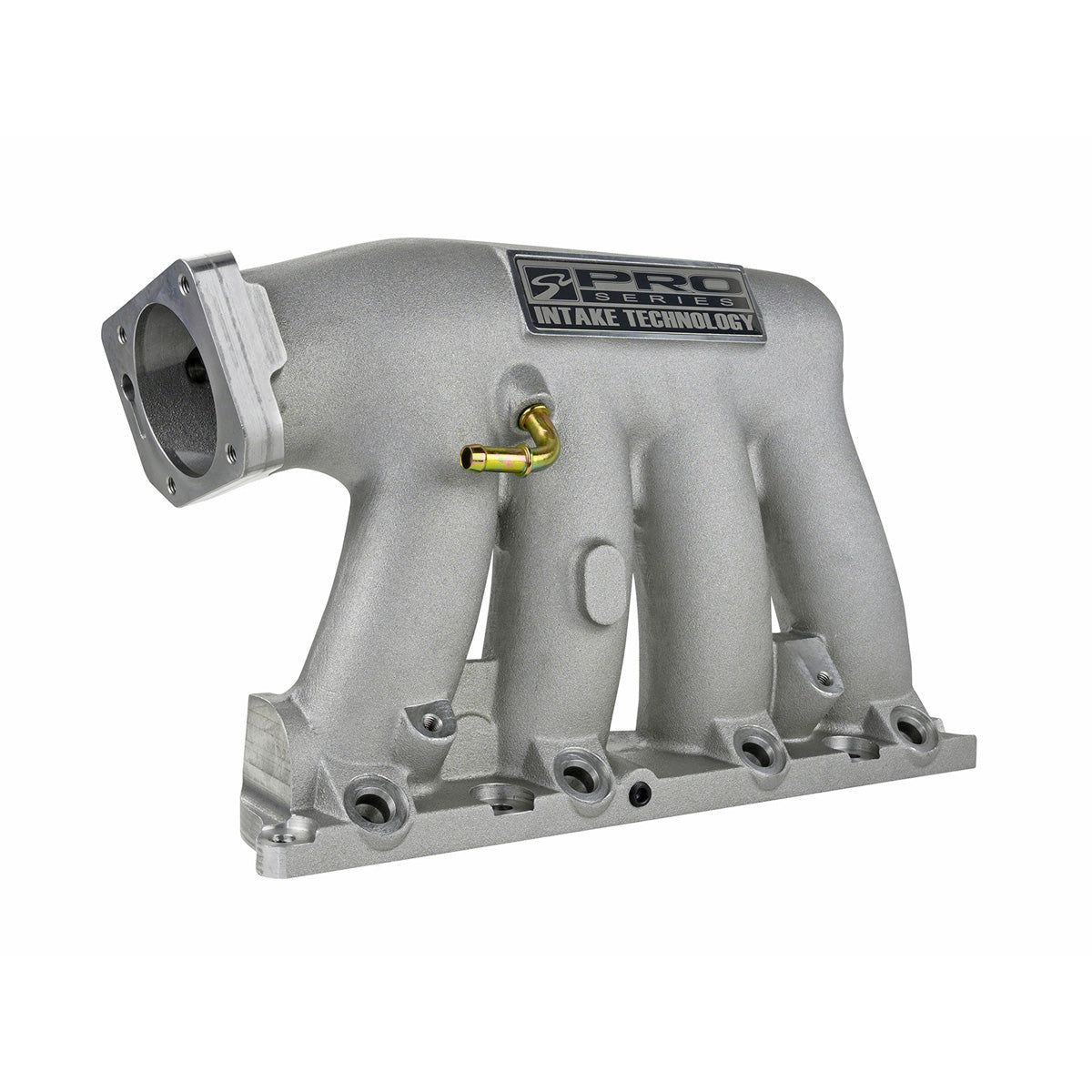

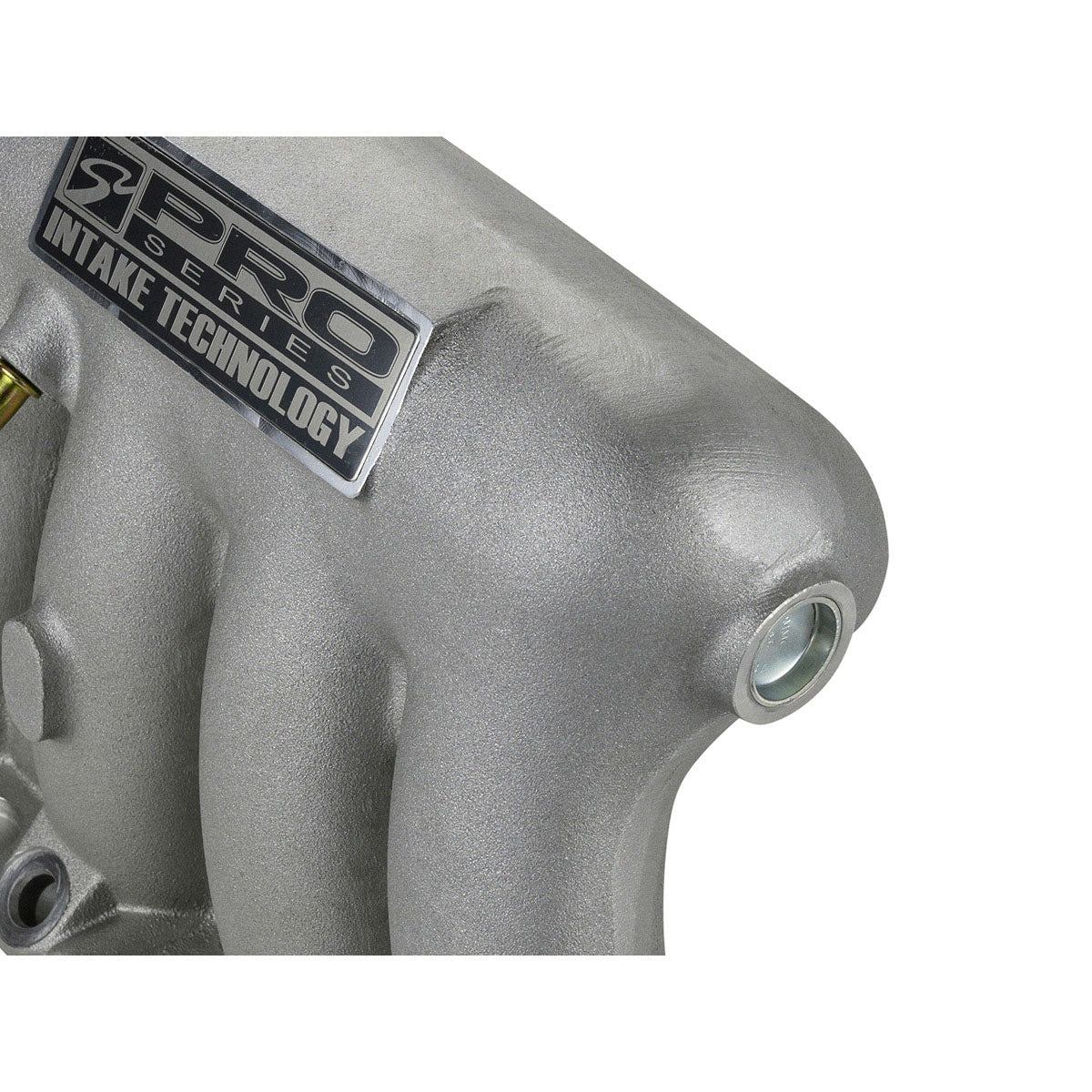

The Skunk2 Pro Series intake manifold is cast in one piece from A356 aluminium and replaces the factory manifold on K20A, K20A2, K20Z1 and K24 (PRB flange) engines. It has a larger plenum and long tapered runners, to gain power in the mid and upper rev range without losing the midrange.
Specifications
| Brand | Skunk2 Racing |
| Code | 307-05-0310, 307-05-0315 |
| Material | A356 aluminium, one-piece casting |
| Throttle body opening | 70 mm, can be port matched to 76 mm |
| Sensors | Works with all factory sensors |
| Testing | Every manifold is vacuum tested |
Which cars it fits
- Honda K20A, K20A2, K20Z1 and K24 engines with the PRB / PRC flange
- Honda Civic Type R EP3 and Integra DC5 / Acura RSX
- Not for the 2006-2010 Civic Si (K20Z3) and not for drive by wire throttle bodies
What to check
- Reuses the factory coolant neck.
- The angled runners leave hood clearance for K swaps into 1988-2000 Civics and 1990-2001 Integras.

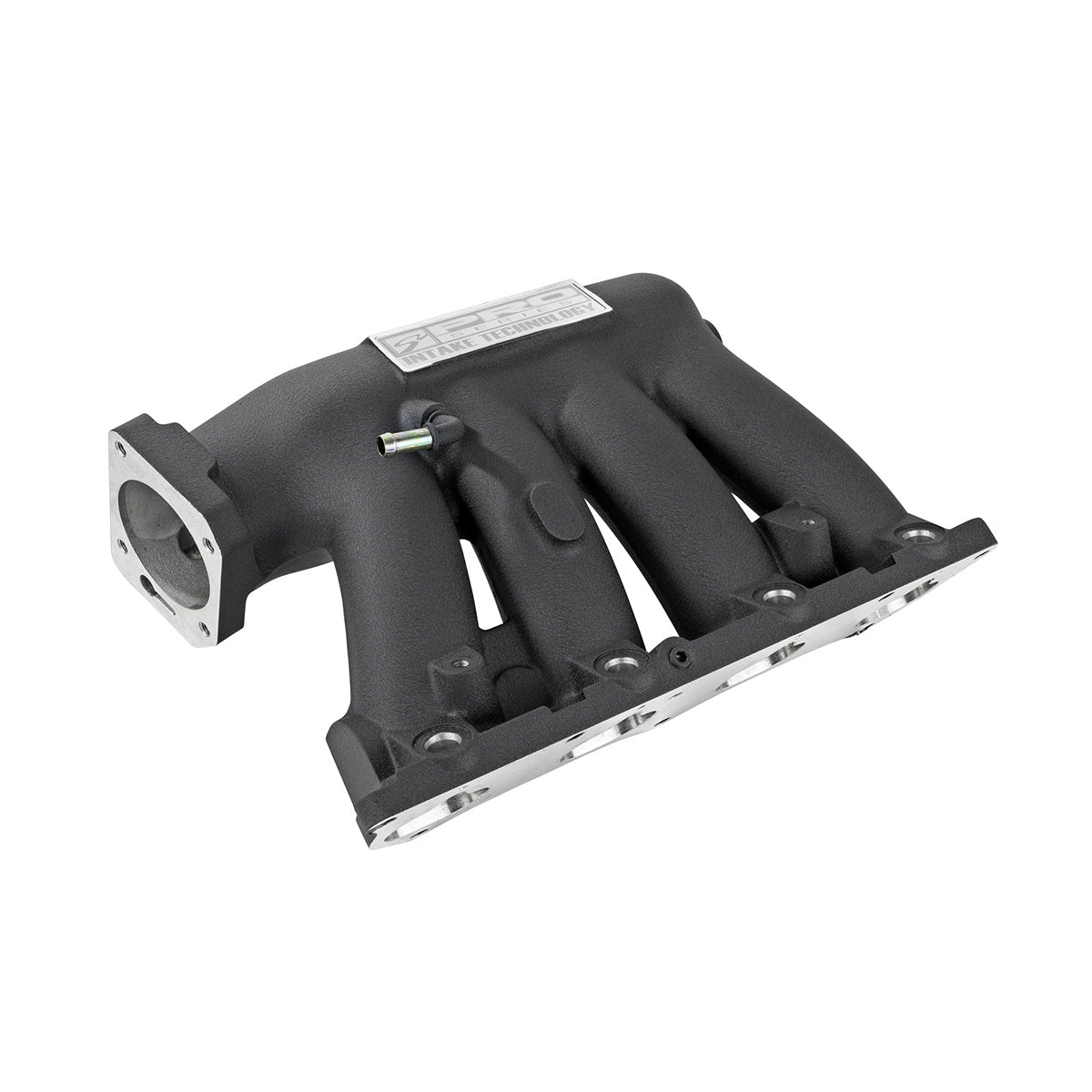

- The black version is wrinkle powder coated.
Skunk2 Pro Series Intake Manifold for Honda K20A, K20A2, K20Z1 and K24 (PRB flange) Engines
Sale price3.713,00 lei
