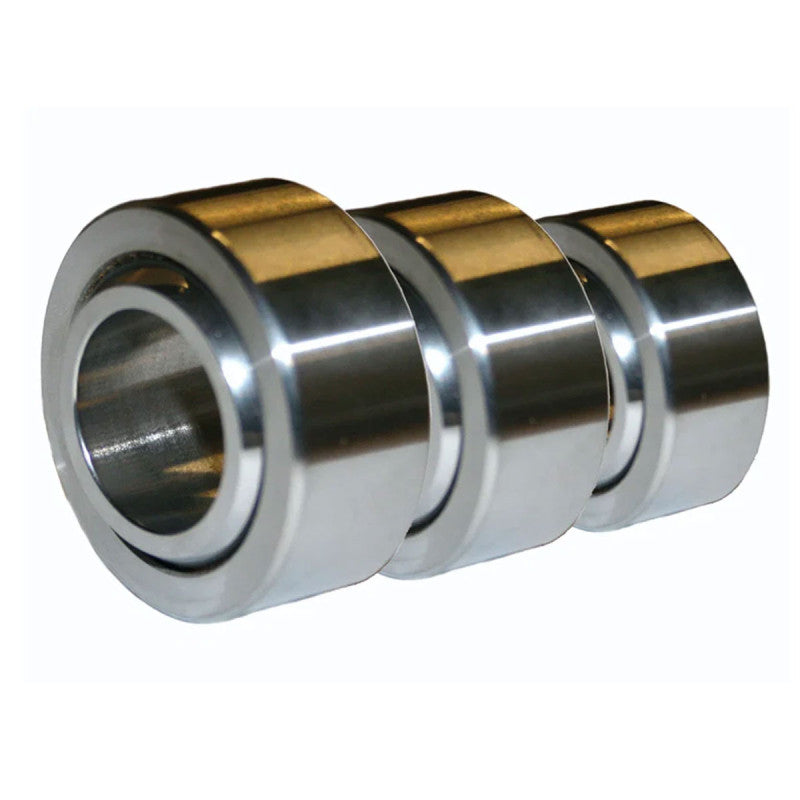

Photo shown for illustration; shade and shape may differ slightly.
NMB ABWT6V Spherical Bearing - 3/8 inch Bore, PTFE Liner
Warehouse stock
NMB spherical bearing with a 3/8 inch bore and a PTFE liner that needs no lubrication. The outer race has a V-groove: it is pressed into the housing and staked in place.
Specifications
| Bore | 3/8 inch (9.53 mm) |
| Outside diameter | 0.8125 inch (20.64 mm) |
| Outer race width | 0.406 inch (10.31 mm) |
| Ball width | 0.500 inch (12.70 mm) |
| Misalignment | 8 degrees |
| Ultimate static radial load | 13,700 lbf (about 6,200 kg) |
| Materials | 440C stainless ball, 410 stainless race, PTFE liner |
| Temperature | -54 to 121 degrees C |
| Weight | 27 g |
| NMB code | ABWT6V |
What it is not
- It is not a threaded rod end: it is the bearing alone, pressed into a housing.
- Threaded rod ends are under rod ends and spherical bearings.
