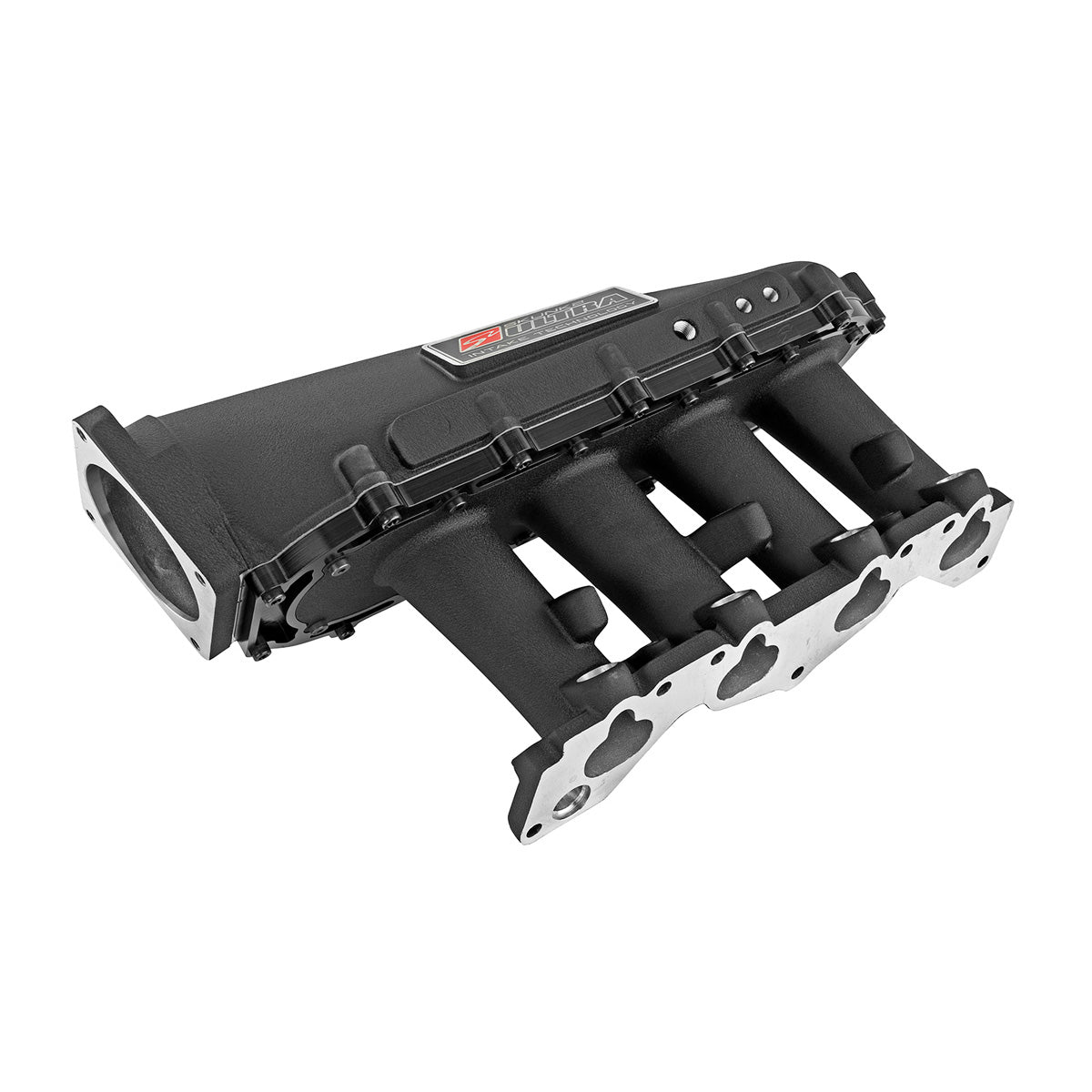

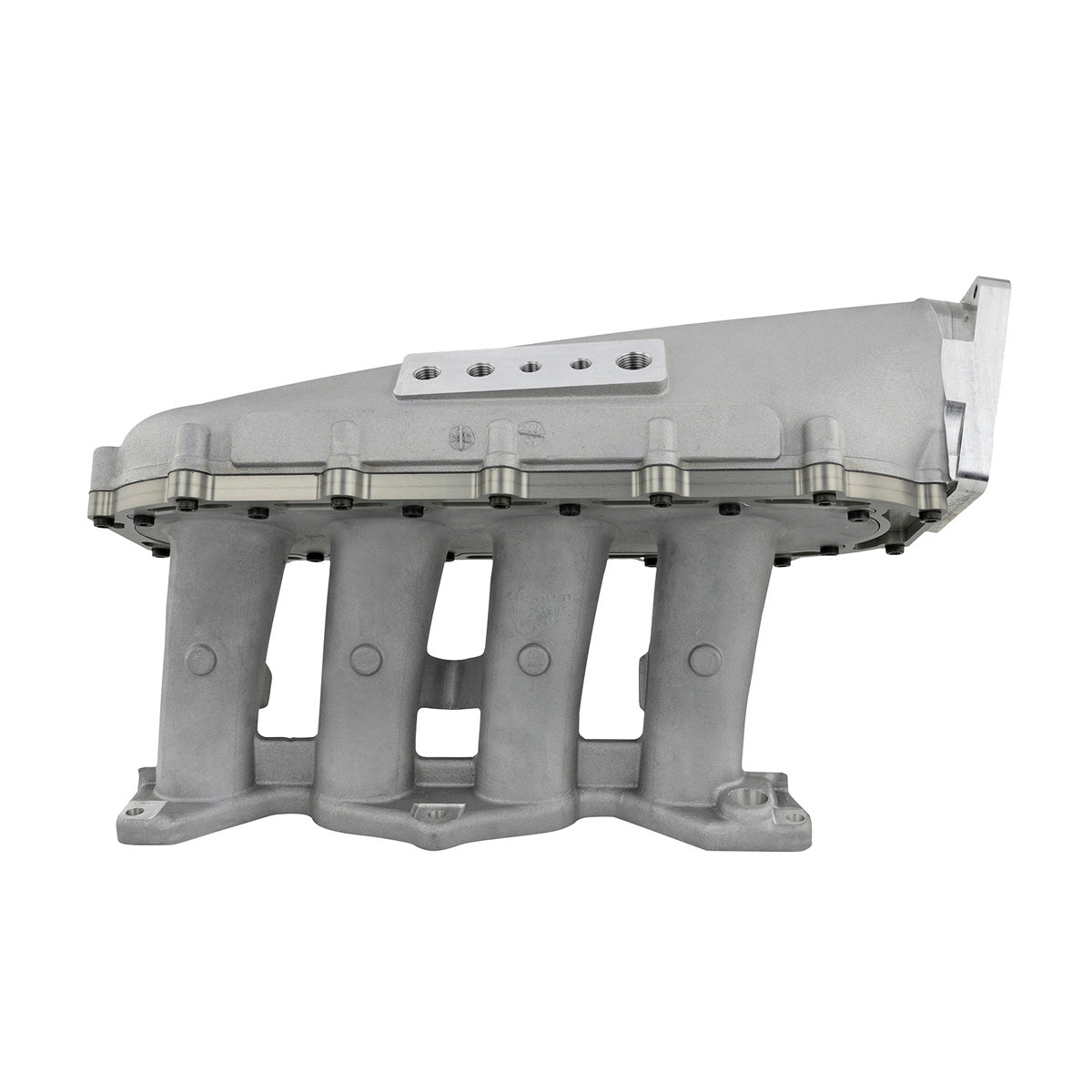

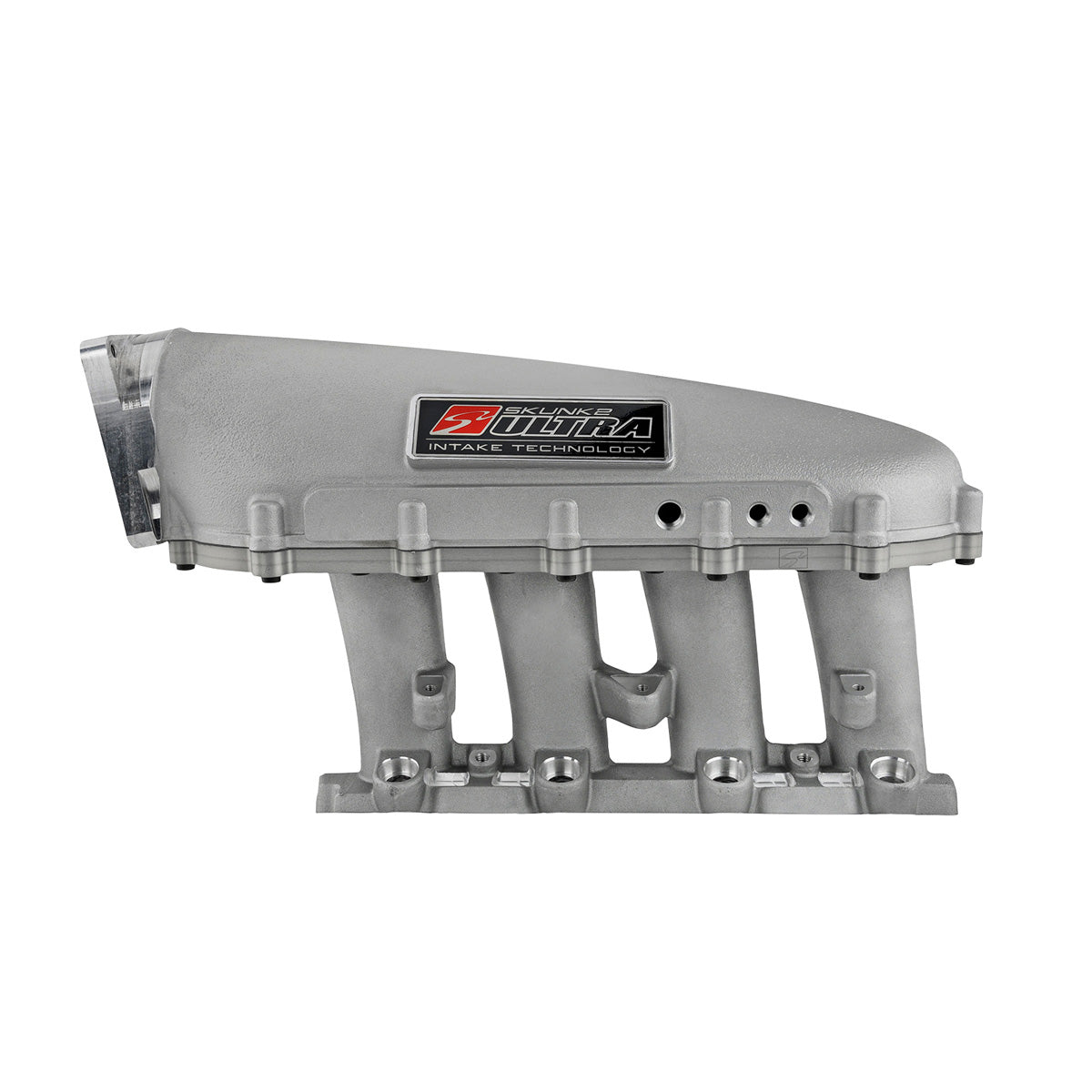

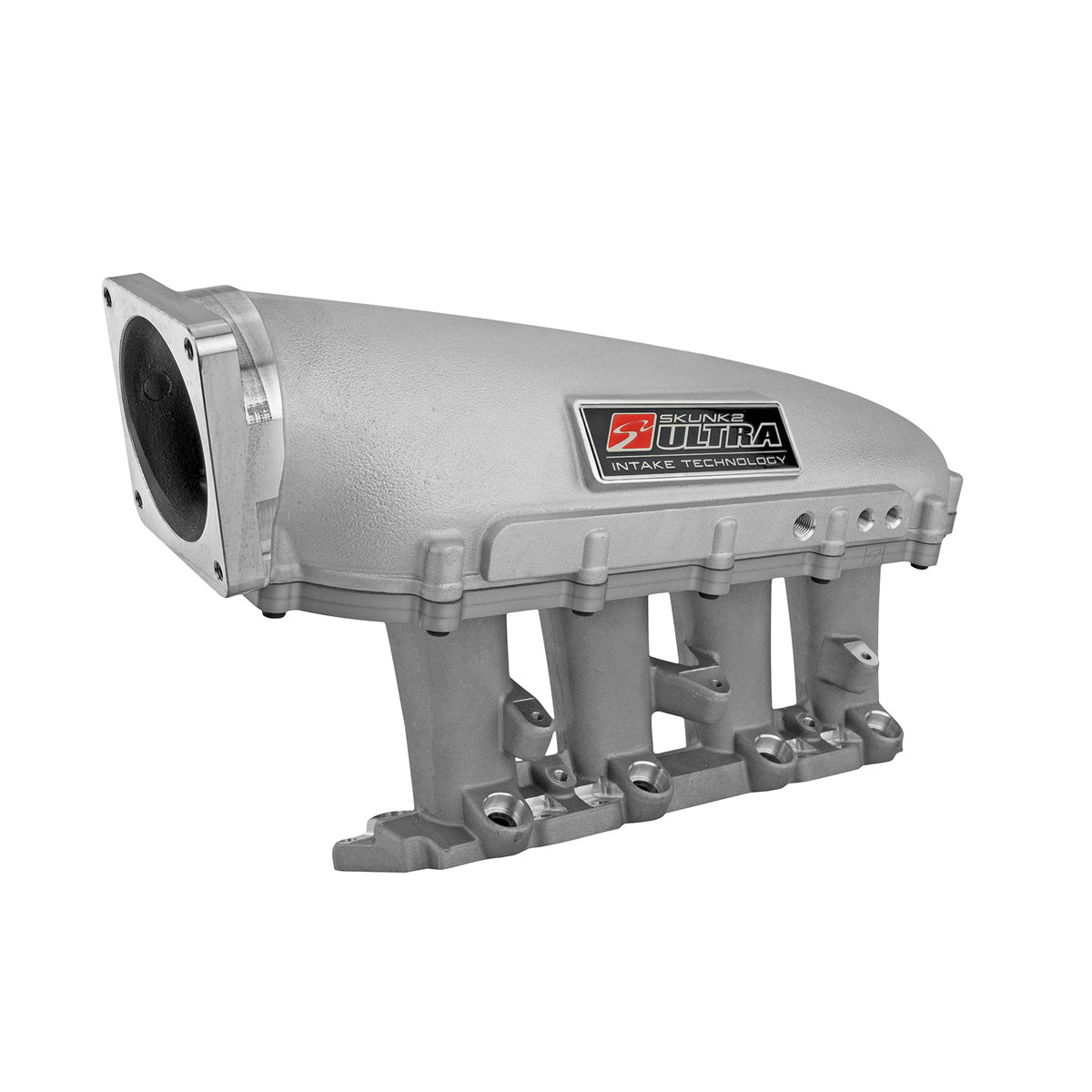

Skunk2 Ultra Race 3.5L Side Feed Intake Manifold for Honda D16Y8 and D16Z6 VTEC Engines
Supplier stock
The Skunk2 Ultra Race intake manifold is made for race engines: a 3.5 litre plenum, short tapered runners and a 90 mm throttle body flange. It favours peak power at high rpm, on Honda D16Y8 and D16Z6 VTEC engines.
Specifications
| Brand | Skunk2 Racing |
| Code | 307-05-9200, SK2-307-05-9205 |
| Material | A356 aluminium, cast |
| Construction | Modular, removable plenum |
| Plenum volume | 3.5 litres |
| Plenum feed | Side feed |

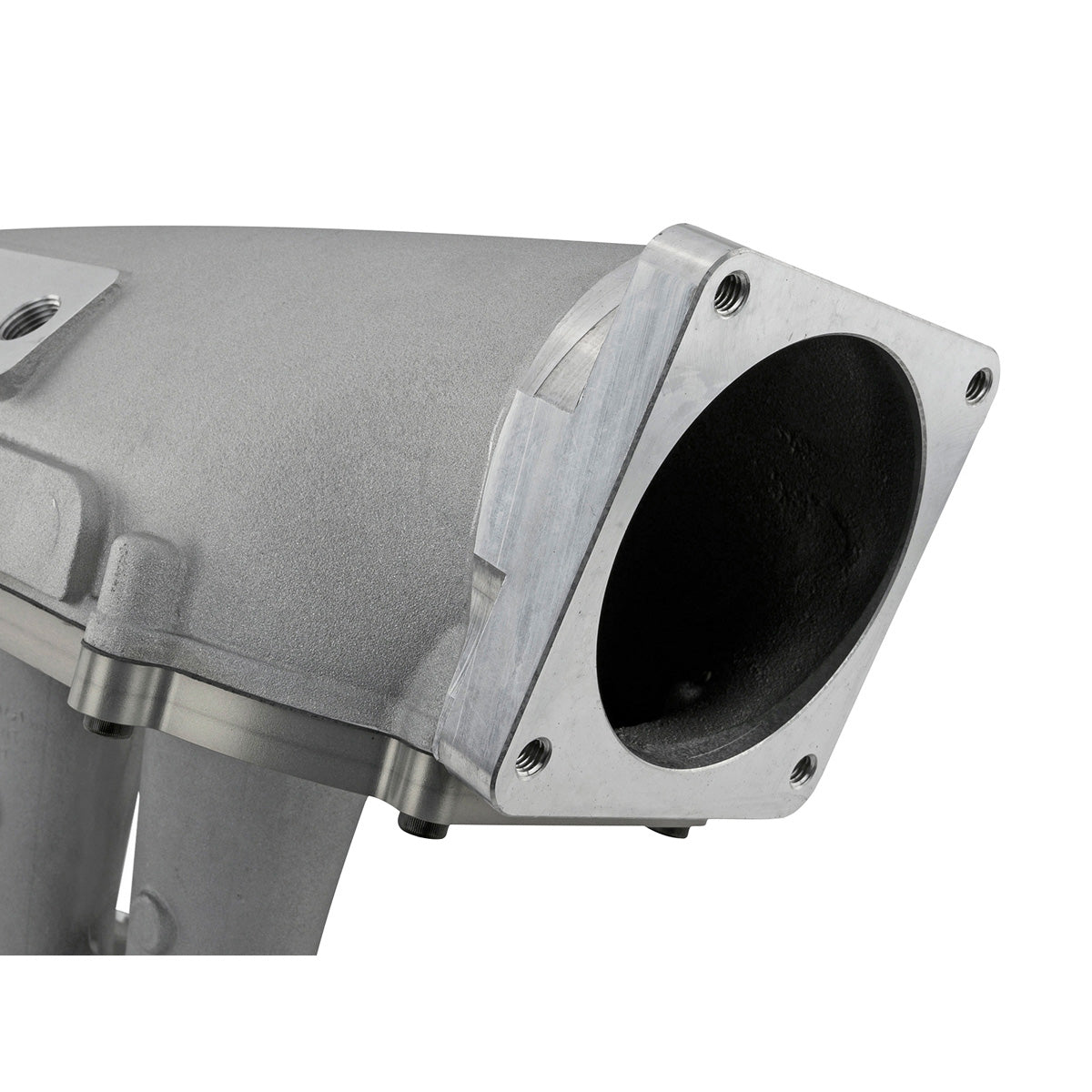

| Throttle body flange | 90 mm, Ford 5.0 pattern |
| Runners | Tapered, 170 mm, with 81 mm velocity stacks |
Which cars it fits
- Honda SOHC VTEC D-series engines: D16Y8 and D16Z6
What to check
- Skunk2 lists it for racing only, not for road use.
- Pick the plenum by power: 3.5 litres up to 600 hp, 4.5 litres for 600-1000 hp, 5.5 litres above 1000 hp. 1 and 2 litre spacers are sold separately.
- It has provisions for a second set of injectors underneath.
- Skunk2's recommended throttle body: Pro Series 90 mm (309-05-0900 / 0905).
- Skunk2 recommends it for naturally aspirated engines up to 450 hp and turbo or supercharged engines from 650 hp up.
Skunk2 Ultra Race 3.5L Side Feed Intake Manifold for Honda D16Y8 and D16Z6 VTEC Engines
Sale price5.834,00 lei
