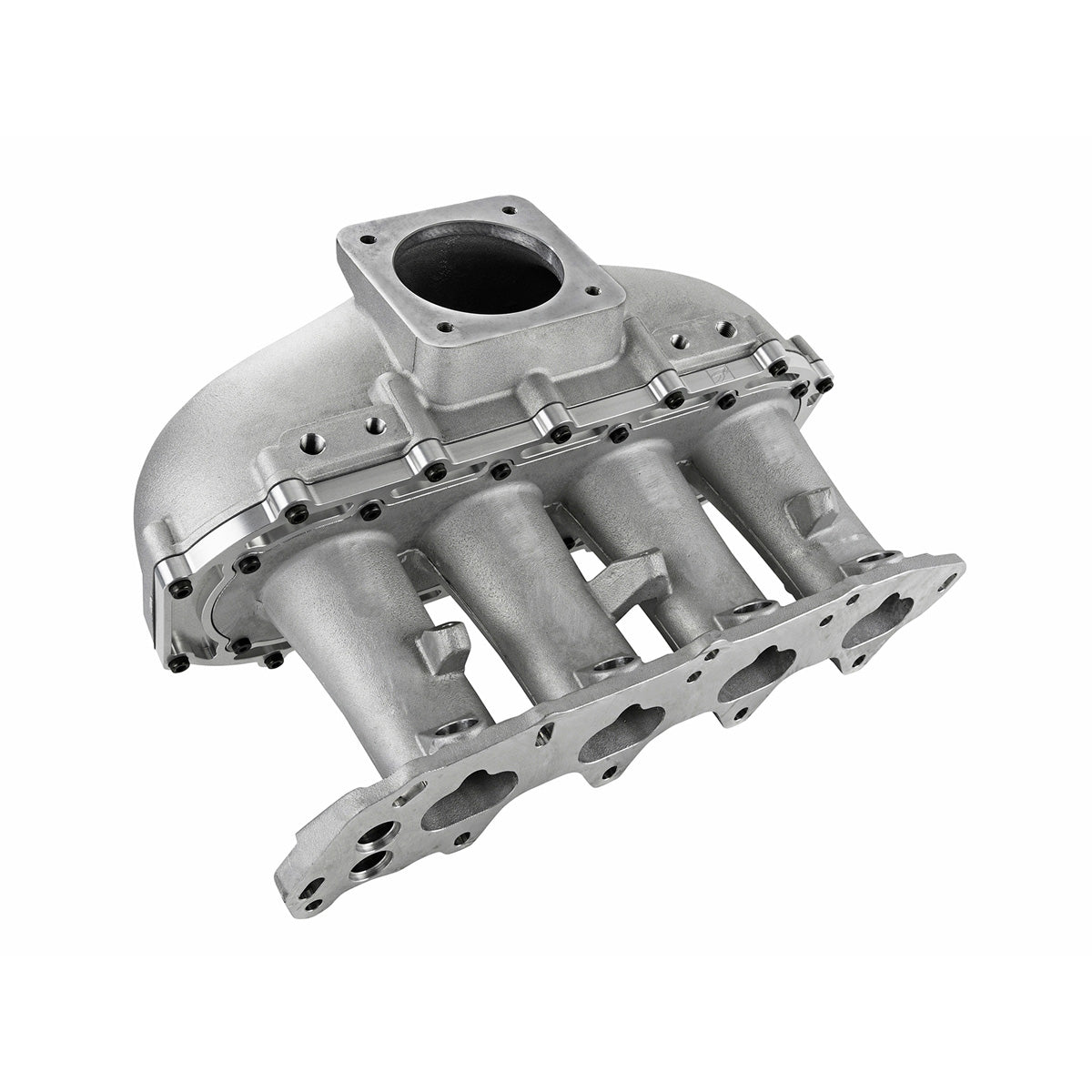

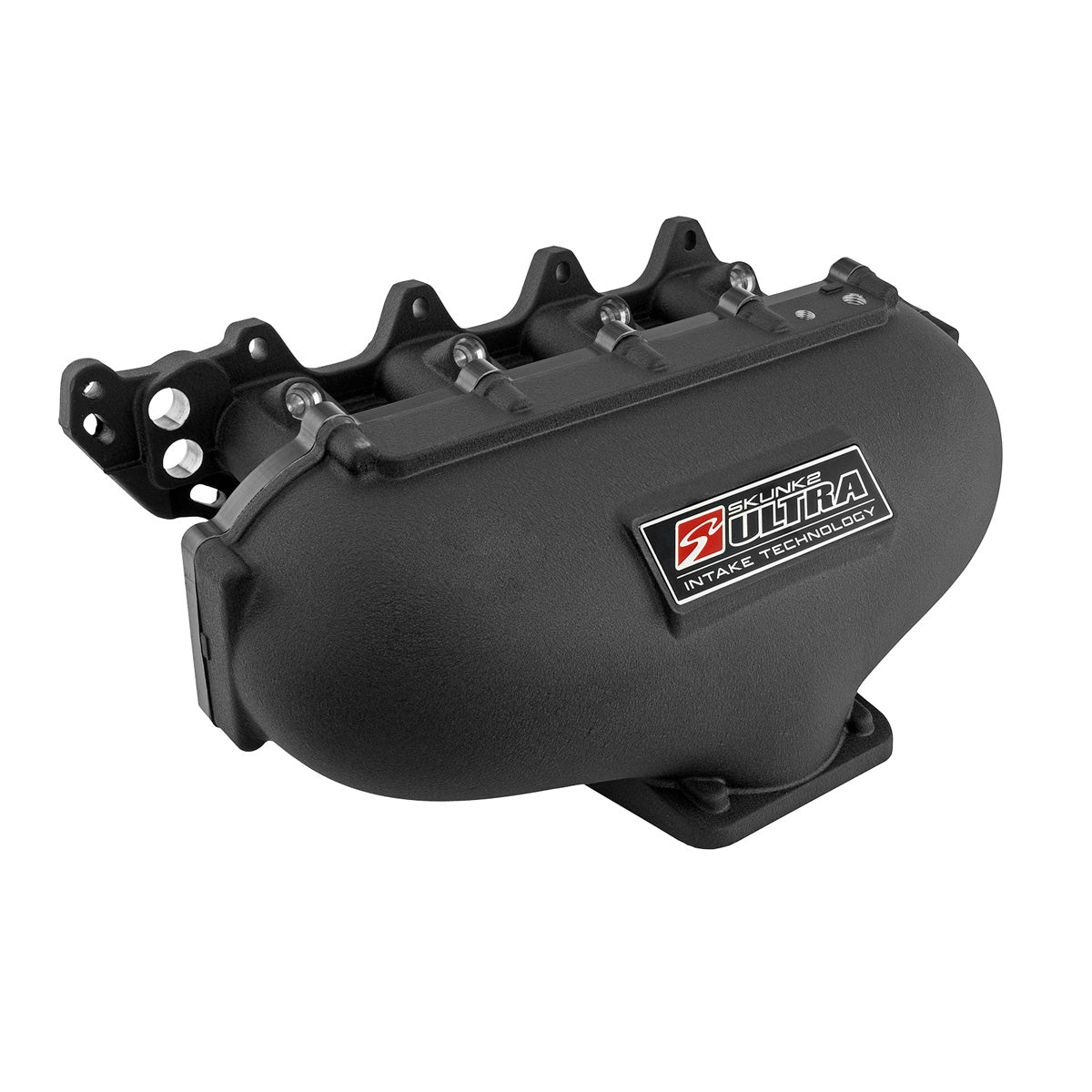

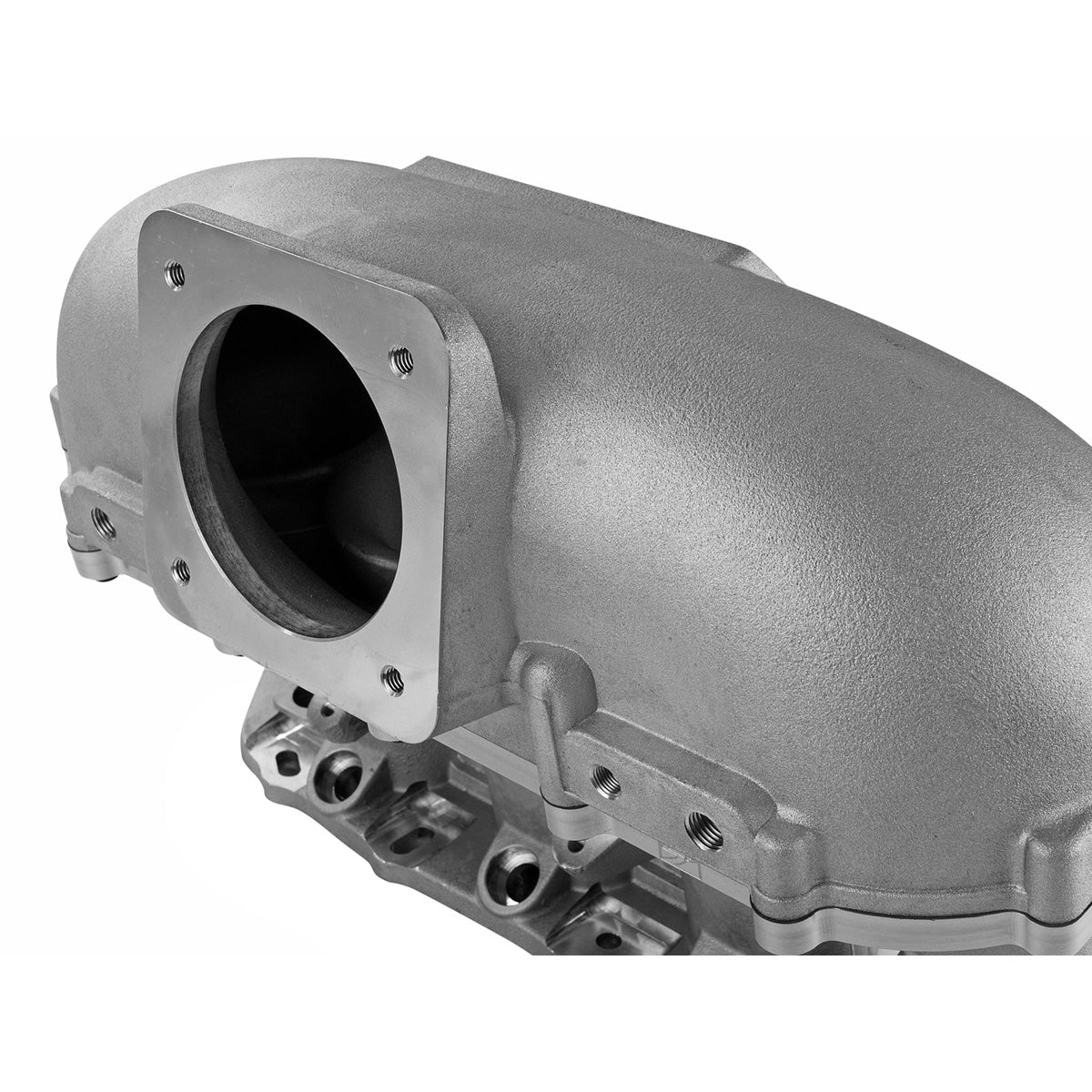

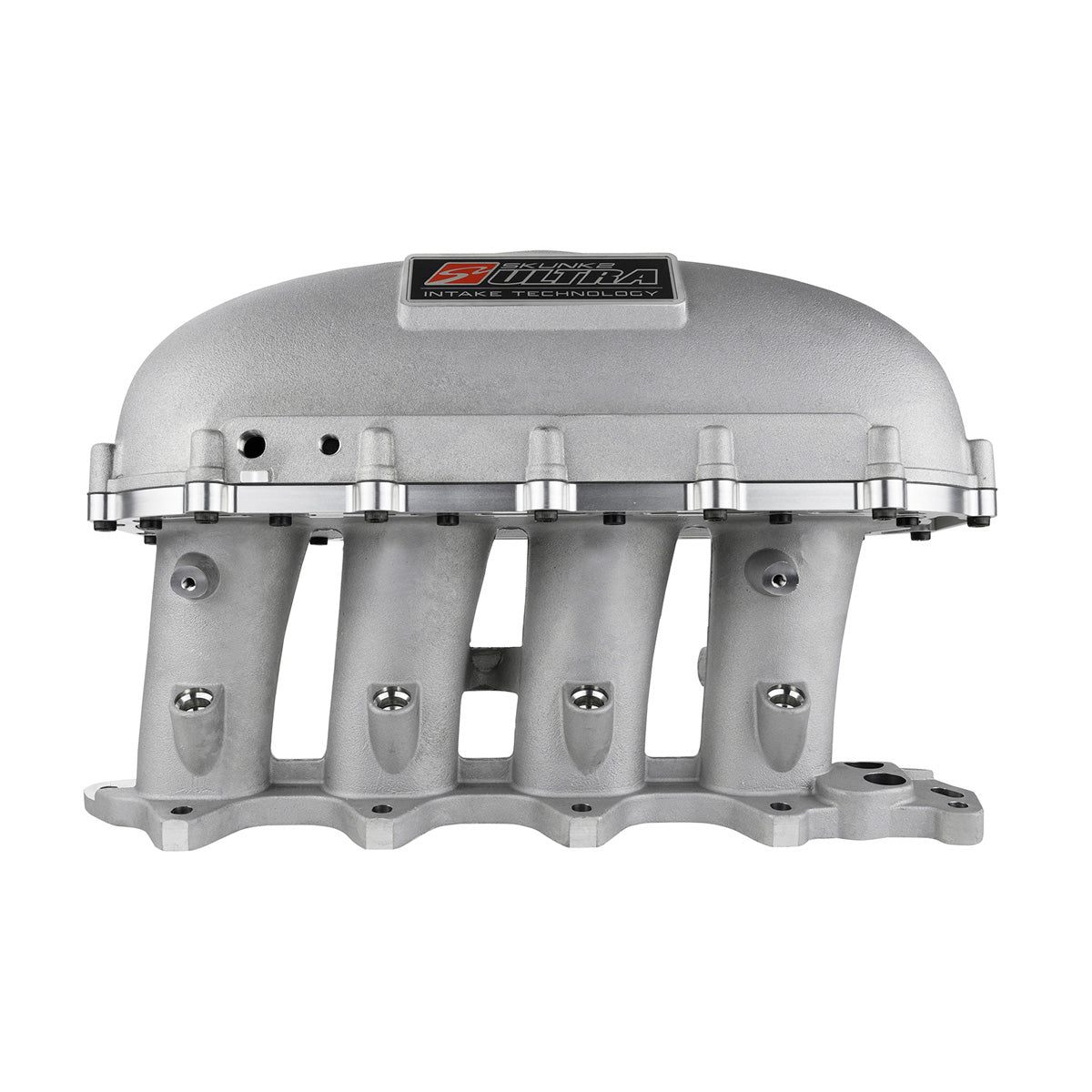

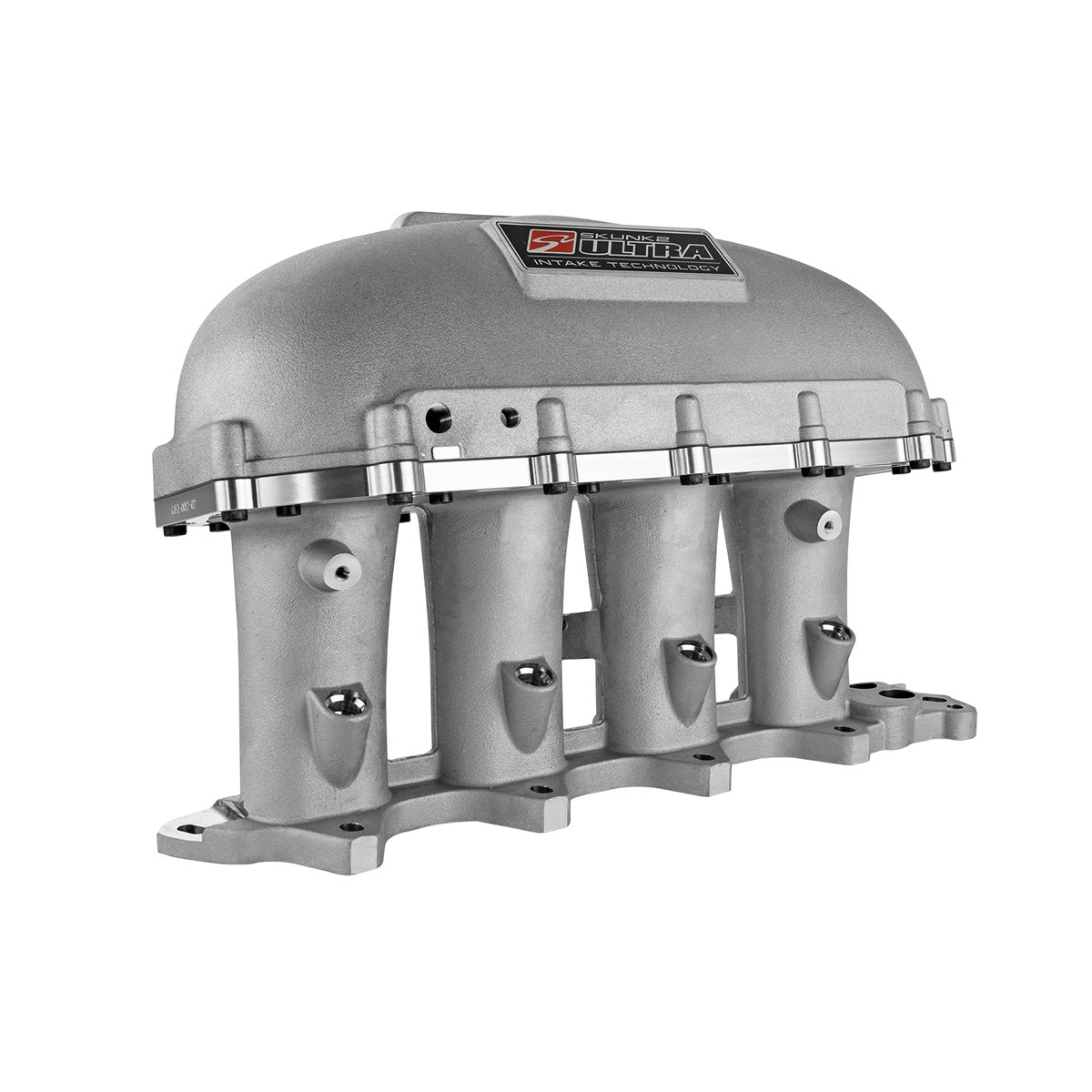

Skunk2 Ultra Race 5.0L Centre Feed Intake Manifold for Honda B16A, B17A, B18A, B18C and B20A Engines
Supplier stock
The Skunk2 Ultra Race intake manifold is made for race engines: a 5.0 litre plenum, short tapered runners and a 90 mm throttle body flange. It favours peak power at high rpm, on Honda B16A, B17A, B18A, B18C and B20A engines.
Specifications
| Brand | Skunk2 Racing |
| Code | 307-05-9080, 307-05-9085 |
| Material | A356 aluminium, cast |
| Construction | Modular, removable plenum |
| Plenum volume | 5.0 litres |
| Plenum feed | Centre feed |
| Throttle body flange | 90 mm, Ford 5.0 pattern |
| Runners | Tapered, 152 mm, with 87 mm velocity stacks |
Which cars it fits
- Honda B-series engines, VTEC and non-VTEC: universal flange
What to check
- Skunk2 lists it for racing only, not for road use.
- Pick the plenum by power: 3.5 litres up to 600 hp, 4.5 litres for 600-1000 hp, 5.5 litres above 1000 hp. 1 and 2 litre spacers are sold separately.
- It has provisions for a second set of injectors underneath.
- The centre feed moves the throttle body forward, above all the runners, so air reaches the cylinders evenly.
- Skunk2 recommends it for naturally aspirated engines up to 450 hp and turbo or supercharged engines from 650 hp up.
